Metal shielded high current inductor
Metal shielded high current inductor Filter Models: 3 in total, please see the table below.
Series | Inductance | DCR | Saturation Current(A) | Temperature Current(A) | Spec. | Sample Application |

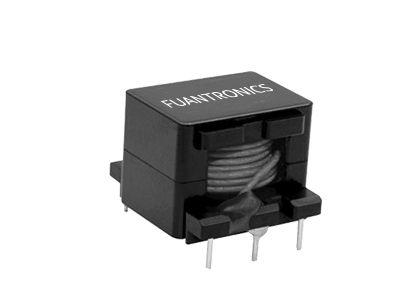

FACPQ4228 | 6.80-470 | 2.80-11.5 | 3.20-75.0 | 17.5-34.0 | - | - |
FACPQ4228-6R8M | 6.80 | 2.80-2.95 | 75.0 | 34.0 | ||
FACPQ4228-100M | 10.0 | 2.80-2.95 | 60.0 | 34.0 | ||
FACPQ4228-150M | 15.0 | 2.80-2.95 | 47.0 | 34.0 | ||
FACPQ4228-220M | 22.0 | 2.80-2.95 | 35.4 | 34.0 | ||
FACPQ4228-330M | 33.0 | 2.80-2.95 | 24.7 | 34.0 | ||
FACPQ4228-470M | 47.0 | 2.80-2.95 | 17.6 | 34.0 | ||
FACPQ4228-680M | 68.0 | 2.80-2.95 | 12.2 | 34.0 | ||
FACPQ4228-101M | 100.0 | 2.80-2.95 | 7.80 | 34.0 | ||
FACPQ4228-151M | 150.0 | 2.80-2.95 | 4.96 | 34.0 | ||
FACPQ4228-221M | 220.0 | 10.5-11.5 | 7.20 | 17.5 | ||
FACPQ4228-331M | 330.0 | 10.5-11.5 | 4.70 | 17.5 | ||
FACPQ4228-471M | 470.0 | 10.5-11.5 | 3.20 | 17.5 | ||

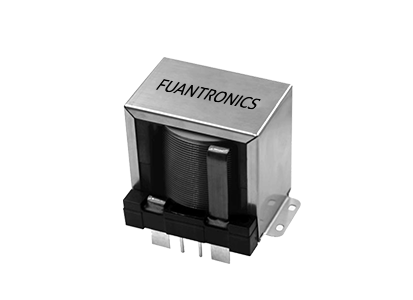

FACPFL3020 | 10.0-56.0 | 7.70-42.3 | 16.0-39.0 | 10.0-19.0 | - | - |
FACPFL3020-100M | 10.0 | 7.70-9.30 | 39.0 | 19.0 | ||
FACPFL3020-120M | 12.0 | 8.60-10.4 | 35.0 | 18.0 | ||
FACPFL3020-150M | 15.0 | 9.70-11.7 | 31.0 | 17.0 | ||
FACPFL3020-220M | 22.0 | 20.7-24.9 | 27.0 | 13.0 | ||
FACPFL3020-270M | 27.0 | 21.8-26.2 | 23.5 | 12.5 | ||
FACPFL3020-330M | 33.0 | 25.1-30.2 | 21.0 | 12.0 | ||
FACPFL3020-470M | 47.0 | 31.9-38.3 | 18.0 | 11.0 | ||
FACPFL3020-560M | 56.0 | 35.8-42.3 | 16.0 | 10.0 | ||

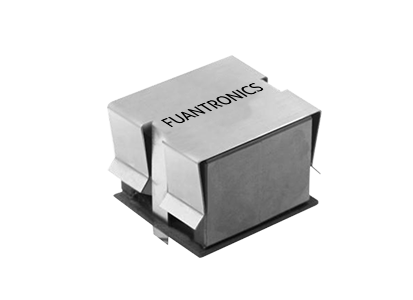

FACPFS6560 | 300.0 | 9.66-11.6 | 27.0 | 25.0 | - | - |
FACPFS6560-301M | 300.0 | 9.66-11.6 | 27.0 | 25.0 |
* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
