Constant Voltage Cost-effective Type Filter Models: 8 in total, please see the table below.
| Series | Rated power（W） | Input voltage（V） | Output current（mA） | Output voltage（V） | Efficiency | Certificate | Spec. | PF | Sample Application |
| PGDW12 | 12 | 90-264 | - | 12,24,36 | - | CE | - | - | |
| PGDW12V12 | 12 | 90-264 | 0-1A | 12 | 79.0% | CE | - | ||
| PGDW12V24 | 12 | 90-264 | 0-0.5A | 24 | 81.0% | CE | - | ||
| PGDW12V36 | 12 | 90-264 | 0-0.33A | 36 | 82.0% | CE | - | ||
| PGDW25 | 25 | 90-264 | - | 12,24,36 | - | CE | - | - | |
| PGDW25V12 | 25 | 90-264 | 0-2.1A | 12 | 79.0% | CE | - | ||
| PGDW25V24 | 25 | 90-264 | 0-1.1A | 24 | 81.0% | CE | - | ||
| PGDW25V36 | 25 | 90-264 | 0-0.7A | 36 | 82.0% | CE | - | ||

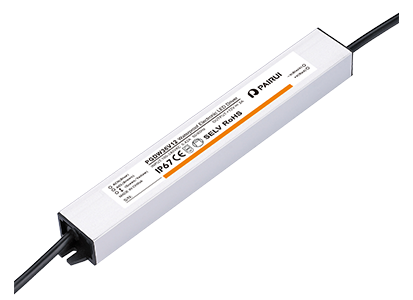

| PGDW36 | 36 | 90-264 | - | 12,24,36 | - | CE | - | - | |
| PGDW36V12 | 36 | 90-264 | 0-3A | 12 | 80.0% | CE | - | ||
| PGDW36V24 | 36 | 90-264 | 0-1.5A | 24 | 82.0% | CE | - | ||
| PGDW36V36 | 36 | 90-264 | 0-1A | 36 | 83.0% | CE | - | ||

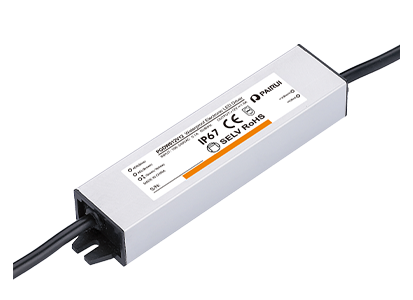

| PGDW60 | 60 | 90-264 | - | 12,24 | - | CE | - | - | |
| PGDW60V12 | 60 | 90-264 | 0-5A | 12 | 85.5% | CE | - | ||
| PGDW60V24 | 60 | 90-264 | 0-2.5A | 24 | 87.5% | CE | - | ||

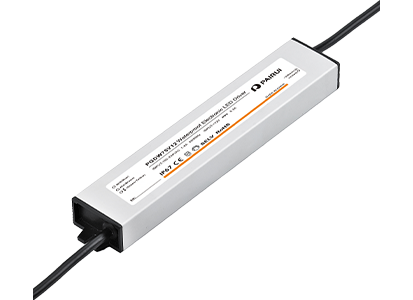

| PGDW75 | 75 | 90-264 | - | 12,24 | - | CE | - | - | |
| PGDW75V12 | 75 | 90-264 | 0-6.3A | 12 | 85.5% | CE | - | ||
| PGDW75V24 | 75 | 90-264 | 0-3.2A | 24 | 87.5% | CE | - | ||

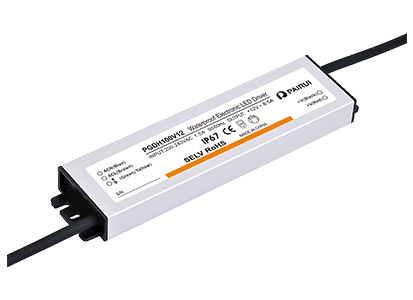

| PGDH100 | 100 | 180-264 | - | 12,24,36 | - | CE | - | - | |
| PGDH100V12 | 100 | 180-264 | 0-8.4A | 12 | 87.0% | CE | - | ||
| PGDH100V24 | 100 | 180-264 | 0-4.2A | 24 | 88.0% | CE | - | ||
| PGDH100V36 | 100 | 180-264 | 0-2.8A | 36 | 88.0% | CE | - | ||

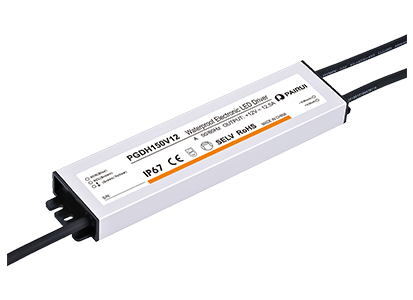

| PGDH150 | 150 | 180-264 | - | 12,24,36 | - | CE | - | - | |
| PGDH150V12 | 150 | 180-264 | 0-12.5A | 12 | 92.0% | CE | - | ||
| PGDH150V24 | 150 | 180-264 | 0-6.3A | 24 | 93.0% | CE | - | ||
| PGDH150V36 | 150 | 180-264 | 0-4.2A | 36 | 93.5% | CE | - | ||

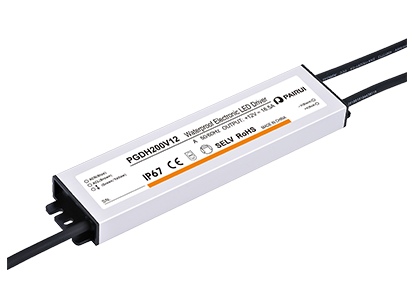

| PGDH200 | 200 | 180-264 | - | 12,24,36 | - | CE | - | - | |
| PGDH200V12 | 200 | 180-264 | 0-16.7A | 12 | 92.0% | CE | - | ||
| PGDH200V24 | 200 | 180-264 | 0-8.4A | 24 | 93.0% | CE | - | ||
| PGDH200V36 | 200 | 180-264 | 0-5.6A | 36 | 93.5% | CE | - |
* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
