Differential Mode Inductor
Click to expand the criteria search box
Differential Mode Inductor Filter Models: 102 in total, please see the table below.
| Series | Inductance | DCR | Load current | Spec. | Sample Application |
| FASDRH1206B | 1.00-820 | 7.80-1700 | 0.63-10.0 | - | - |
| FASDRH1206B-1R0Y10R0 | 1.00 | 7.80 | 10.0 | ||
| FASDRH1206B-1R2Y9R8 | 1.20 | 8.00 | 9.80 | ||
| FASDRH1206B-1R5Y9R0 | 1.50 | 9.50 | 9.00 | ||
| FASDRH1206B-2R2Y8R5 | 2.20 | 10.5 | 8.50 | ||
| FASDRH1206B-2R4Y8R0 | 2.40 | 11.5 | 8.00 | ||
| FASDRH1206B-3R3Y7R8 | 3.30 | 12.0 | 7.80 | ||
| FASDRH1206B-3R5Y7R6 | 3.50 | 13.0 | 7.60 | ||
| FASDRH1206B-4R7Y7R0 | 4.70 | 15.5 | 7.00 | ||
| FASDRH1206B-5R6Y6R9 | 5.60 | 16.2 | 6.90 | ||
| FASDRH1206B-6R1Y6R8 | 6.10 | 17.0 | 6.80 | ||
| FASDRH1206B-6R8Y6R5 | 6.80 | 18.0 | 6.50 | ||
| FASDRH1206B-7R6Y6R2 | 7.60 | 19.0 | 6.20 | ||
| FASDRH1206B-8R2Y5R8 | 8.20 | 19.5 | 5.80 | ||
| FASDRH1206B-100M5R5 | 10.0 | 20.0 | 5.50 | ||
| FASDRH1206B-101M1R7 | 100 | 180.0 | 1.70 | ||
| FASDRH1206B-102K0R6 | 1000 | 1700.0 | 0.60 | ||
| FASDRH1206B-120M5R0 | 12.0 | 23.0 | 5.00 | ||
| FASDRH1206B-121K1R65 | 120 | 210.0 | 1.65 | ||
| FASDRH1206B-150M4R6 | 15.0 | 23.0 | 4.60 | ||
| FASDRH1206B-151K1R55 | 150 | 260.0 | 1.55 | ||
| FASDRH1206B-180M3R9 | 18.0 | 27.0 | 3.90 | ||
| FASDRH1206B-181K1R4 | 180 | 320.0 | 1.40 | ||
| FASDRH1206B-220M3R7 | 22.0 | 36.0 | 3.70 | ||
| FASDRH1206B-221K1R3 | 220 | 380.0 | 1.30 | ||
| FASDRH1206B-270M3R3 | 27.0 | 43.0 | 3.30 | ||
| FASDRH1206B-271K1R2 | 270 | 450.0 | 1.20 | ||
| FASDRH1206B-330M2R8 | 33.0 | 60.0 | 2.80 | ||
| FASDRH1206B-331K1R1 | 330 | 580.0 | 1.10 | ||
| FASDRH1206B-390M2R7 | 39.0 | 70.0 | 2.70 | ||
| FASDRH1206B-391K1R0 | 390 | 700.0 | 1.00 | ||
| FASDRH1206B-470M2R5 | 47.0 | 86.0 | 2.50 | ||
| FASDRH1206B-471K0R9 | 470 | 820.0 | 0.90 | ||
| FASDRH1206B-560M2R2 | 56.0 | 100.0 | 2.20 | ||
| FASDRH1206B-561K0R8 | 560 | 1000.0 | 0.80 | ||
| FASDRH1206B-680M2R1 | 68.0 | 110.0 | 2.10 | ||
| FASDRH1206B-681K0R75 | 680 | 1150.0 | 0.75 | ||
| FASDRH1206B-820M1R9 | 82.0 | 145.0 | 1.90 | ||
| FASDRH1206B-821K0R63 | 820 | 1500.0 | 0.63 | ||
| FAHPI0412 | 0.15-4.70uH | 0.009-0.195Ω | 2200-15000mA | - | |
| FAHPI0412-1R0M5R5 | 1.00uH | 0.0470Ω | 5500mA | ||
| FAHPI0412-1R5M4R0 | 1.50uH | 0.0750Ω | 4000mA | ||
| FAHPI0412-2R2M3R0 | 2.20uH | 0.0835Ω | 3000mA | ||
| FAHPI0412-4R7M2R2 | 4.70uH | 0.1950Ω | 2200mA | ||
| FAHPI0412-R15M15R0 | 0.15uH | 0.0090Ω | 15000mA | ||
| FAHPI0412-R22M11R0 | 0.22uH | 0.0110Ω | 11000mA | ||
| FAHPI0412-R33M8R4 | 0.33uH | 0.0190Ω | 8400mA | ||
| FAHPI0412-R47M6R8 | 0.47uH | 0.0210Ω | 6800mA | ||
| FAHPI0412-R68M6R0 | 0.68uH | 0.0360Ω | 6000mA | ||
| FAHPI0420 | 0.10-22.00uH | 0.0066-0.3630Ω | 1400-22000mA | - | |
| FAHPI0420-1R0M7R0 | 1.00uH | 0.0270Ω | 7000mA | ||
| FAHPI0420-1R2M6R5 | 1.20uH | 0.0270Ω | 6500mA | ||
| FAHPI0420-1R5M5R5 | 1.50uH | 0.0460Ω | 5500mA | ||
| FAHPI0420-2R2M5R0 | 2.20uH | 0.0580Ω | 5000mA | ||
| FAHPI0420-3R3M3R5 | 3.30uH | 0.0870Ω | 3500mA | ||
| FAHPI0420-4R7M3R0 | 4.70uH | 0.1050Ω | 3000mA | ||
| FAHPI0420-6R8M2R5 | 6.80uH | 0.1750Ω | 2500mA | ||
| FAHPI0420-100M2R0 | 10.00uH | 0.2820Ω | 2000mA | ||
| FAHPI0420-220M1R4 | 22.00uH | 0.3630Ω | 1400mA | ||
| FAHPI0420-R10M22R0 | 0.10uH | 0.0040Ω | 22000mA | ||
| FAHPI0420-R22M12R5 | 0.22uH | 0.0066Ω | 12500mA | ||
| FAHPI0420-R33M12R0 | 0.33uH | 0.0110Ω | 12000mA | ||
| FAHPI0420-R47M9R5 | 0.47uH | 0.0140Ω | 9500mA | ||
| FAHPI0420-R56M9R0 | 0.56uH | 0.0160Ω | 9000mA | ||
| FAHPI0420-R68M8R0 | 0.68uH | 0.0180Ω | 8000mA | ||
| FAHPI0518 | 0.47-10.00uH | 0.009-0.155Ω | 3000-15500mA | - | |
| FAHPI0518-1R0M | 1.00uH | 0.0170Ω | 9000mA | ||
| FAHPI0518-1R5M8R0 | 1.50uH | 0.0260Ω | 8000mA | ||
| FAHPI0518-2R2M6R5 | 2.20uH | 0.0350Ω | 6500mA | ||
| FAHPI0518-3R3M5R0 | 3.30uH | 0.0580Ω | 5000mA | ||
| FAHPI0518-4R7M | 4.70uH | 0.0850Ω | 4000mA | ||
| FAHPI0518-6R8M3R4 | 6.80uH | 0.1200Ω | 3400mA | ||
| FAHPI0518-100M3R0 | 10.00uH | 0.1550Ω | 3000mA | ||
| FAHPI0518-R47M15R5 | 0.47uH | 0.0090Ω | 15500mA | ||
| FAHPI0518-R56M15R0 | 0.56uH | 0.0100Ω | 15000mA | ||
| FAHPI0518-R68M11R2 | 0.68uH | 0.1380Ω | 11200mA | ||
| FAHPI0530 | 0.10-10.00uH | 0.003-0.125Ω | 3500-30000mA | - | |
| FAHPI0530-1R0M10R0 | 1.00uH | 0.0140Ω | 10000mA | ||
| FAHPI0530-1R2M9R5 | 1.20uH | 0.0160Ω | 9500mA | ||
| FAHPI0530-1R5M9R0 | 1.50uH | 0.0250Ω | 9000mA | ||
| FAHPI0530-2R2M7R0 | 2.20uH | 0.0290Ω | 7000mA | ||
| FAHPI0530-3R3M6R0 | 3.30uH | 0.0380Ω | 6000mA | ||
| FAHPI0530-4R7M4R6 | 4.70uH | 0.0600Ω | 4600mA | ||
| FAHPI0530-6R8M3R6 | 6.80uH | 0.0900Ω | 3600mA | ||
| FAHPI0530-100M3R5 | 10.00uH | 0.1250Ω | 3500mA | ||
| FAHPI0530-R10M30R0 | 0.10uH | 0.0030Ω | 30000mA | ||
| FAHPI0530-R20M20R0 | 0.20uH | 0.0039Ω | 20000mA | ||
| FAHPI0530-R33M18R0 | 0.33uH | 0.0055Ω | 18000mA | ||
| FAHPI0530-R47M15R0 | 0.47uH | 0.0085Ω | 15000mA | ||
| FAHPI0530-R68M11R5 | 0.68uH | 0.0120Ω | 9000mA | ||
| FAHPI0615 | 0.47-10.00uH | 0.0085-0.175Ω | 3000-16000mA | - | |
| FAHPI0615-1R0M9R0 | 1.00uH | 0.0210Ω | 9000mA | ||
| FAHPI0615-2R2M7R0 | 2.20uH | 0.0540Ω | 7000mA | ||
| FAHPI0615-3R3M5R5 | 3.30uH | 0.0630Ω | 5500mA | ||
| FAHPI0615-4R7M5R0 | 4.70uH | 0.0850Ω | 5000mA | ||
| FAHPI0615-6R8M4R0 | 6.80uH | 0.1350Ω | 4000mA | ||
| FAHPI0615-100M3R0 | 10.0uH | 0.1750Ω | 3000mA | ||
| FAHPI0615-R47M16R0 | 0.47uH | 0.0085Ω | 16000mA | ||
| FAHPI0615-R56M14R0 | 0.56uH | 0.0110Ω | 14000mA | ||
| FAHPI0615-R68M12R0 | 0.68uH | 0.0120Ω | 12000mA | ||
| FAHPI0615-R82M10R0 | 0.82uH | 0.0170Ω | 10000mA | ||
| FAHPI0618 | 0.10-22.00uH | 0.0023-0.35Ω | 1200-38000mA | - | |
| FAHPI0618-1R0M12R0 | 1.00uH | 0.0160Ω | 1200mA | ||
| FAHPI0618-1R5M9R2 | 1.50uH | 0.0260Ω | 9200mA | ||
| FAHPI0618-2R2M8R0 | 2.20uH | 0.0350Ω | 8000mA | ||
| FAHPI0618-3R3M6R0 | 3.30uH | 0.0500Ω | 6000mA | ||
| FAHPI0618-4R7M5R0 | 4.70uH | 0.0620Ω | 5000mA | ||
| FAHPI0618-6R8M4R5 | 6.80uH | 0.1100Ω | 4500mA | ||
| FAHPI0618-100M4R0 | 10.00uH | 0.1550Ω | 4000mA | ||
| FAHPI0618-220M2R3 | 22.00uH | 0.3500Ω | 2300mA | ||
| FAHPI0618-R10M38R0 | 0.10uH | 0.0023Ω | 38000mA | ||
| FAHPI0618-R22M24R0 | 0.22uH | 0.0035Ω | 24000mA | ||
| FAHPI0618-R47M18R0 | 0.47uH | 0.0084Ω | 18000mA | ||
| FAHPI0618-R68M16R5 | 0.68uH | 0.0120Ω | 16500mA | ||
| FAHPI0624 | 0.22-22.0uH | 0.003-0.23Ω | 2500-34000mA | - | |
| FAHPI0624-1R0M15R0 | 1uH | 0.0135Ω | 15000mA | ||
| FAHPI0624-1R5M13R5 | 1.50uH | 0.0200Ω | 13500mA | - | |
| FAHPI0624-2R2M10R0 | 2.20uH | 0.0280Ω | 10000mA | ||
| FAHPI0624-3R3M8R0 | 3.30uH | 0.0390Ω | 8000mA | ||
| FAHPI0624-4R7M6R5 | 4.70uH | 0.0500Ω | 6500mA | ||
| FAHPI0624-6R8M6R0 | 6.80uH | 0.0700Ω | 6000mA | ||
| FAHPI0624-100M4R0 | 10.00uH | 0.1010Ω | 4000mA | ||
| FAHPI0624-150M3R3 | 15.00uH | 0.1600Ω | 3300mA | ||
| FAHPI0624-220M2R5 | 22.00uH | 0.2300Ω | 2500mA | ||
| FAHPI0624-R22M34R0 | 0.22uH | 0.0030Ω | 34000mA | ||
| FAHPI0624-R33M24R5 | 0.33uH | 0.0041Ω | 24500mA | ||
| FAHPI0624-R47M22R0 | 0.47uH | 0.0051Ω | 22000mA | ||
| FAHPI0624-R56M17R0 | 0.56uH | 0.0065Ω | 17000mA | ||
| FAHPI0624-R68M16R0 | 0.68uH | 0.0070Ω | 16000mA | ||
| FAHPI0630 | 0.22-47.0uH | 0.003-0.385Ω | 2000-25000mA | - | |
| FAHPI0630-1R0M15R0 | 1.00uH | 0.0074Ω | 15000mA | ||
| FAHPI0630-1R5M | 1.50uH | 0.0121Ω | 12000mA | ||
| FAHPI0630-2R2M10R0 | 2.20uH | 0.0150Ω | 10000mA | ||
| FAHPI0630-3R3M9R5 | 3.30uH | 0.0220Ω | 9500mA | ||
| FAHPI0630-4R7M | 4.70uH | 0.0330Ω | 9000mA | ||
| FAHPI0630-5R6M6R5 | 5.60uH | 0.0420Ω | 6500mA | ||
| FAHPI0630-6R8M6R0 | 6.80uH | 0.0480Ω | 6000mA | ||
| FAHPI0630-8R2M5R5 | 8.20uH | 0.0600Ω | 5500mA | ||
| FAHPI0630-100M5R5 | 10.00uH | 0.0680Ω | 5500mA | ||
| FAHPI0630-150M4R0 | 15.00uH | 0.1130Ω | 4000mA | ||
| FAHPI0630-220M3R0 | 22.00uH | 0.1700Ω | 3000mA | ||
| FAHPI0630-330M2R5 | 33.00uH | 0.2700Ω | 2500mA | ||
| FAHPI0630-470M2R0 | 47.00uH | 0.3850Ω | 2000mA | ||
| FAHPI0630-R22M34R0 | 0.22uH | 0.0030Ω | 3400mA | ||
| FAHPI0630-R33M25R0 | 0.33uH | 0.0035Ω | 25000mA | ||
| FAHPI0630-R47M20R0 | 0.47uH | 0.0041Ω | 20000mA | ||
| FAHPI0630-R56M18R0 | 0.56uH | 0.0045Ω | 18000mA | ||
| FAHPI0630-R68M17R0 | 0.68uH | 0.0053Ω | 17000mA | ||
| FAHPI0630-R82M16R0 | 0.82uH | 0.0060Ω | 16000mA | ||
| FAHPI0640 | 0.68-47.00uH | 0.0048-0.32Ω | 2500-19000mA | - | |
| FAHPI0640-1R0M16R0 | 1.00uH | 0.0066Ω | 16000mA | ||
| FAHPI0640-1R5M12R5 | 1.50uH | 0.0100Ω | 12500mA | ||
| FAHPI0640-2R2M11R0 | 2.20uH | 0.0140Ω | 11000mA | ||
| FAHPI0640-3R3M9R5 | 3.30uH | 0.0200Ω | 9500mA | ||
| FAHPI0640-4R7M9R0 | 4.70uH | 0.0300Ω | 9000mA | ||
| FAHPI0640-6R8M6R5 | 6.80uH | 0.0450Ω | 6500mA | ||
| FAHPI0640-100M6R0 | 10.00uH | 0.0650Ω | 6000mA | ||
| FAHPI0640-150M4R5 | 15.00uH | 0.0950Ω | 4500mA | ||
| FAHPI0640-220M4R0 | 22.00uH | 0.1250Ω | 4000mA | ||
| FAHPI0640-330M3R0 | 33.00uH | 0.2400Ω | 3000mA | ||
| FAHPI0640-470M2R5 | 47.00uH | 0.3200Ω | 2500mA | ||
| FAHPI0640-R68M19R0 | 0.68uH | 0.0048Ω | 19000mA | ||
| FAHPI0650 | 0.47-47.0uH | 0.0039-0.2300Ω | 2600-21000mA | - | |
| FAHPI0650-1R0M16R0 | 1.00uH | 0.0066Ω | 16000mA | ||
| FAHPI0650-1R5M13R0 | 1.50uH | 0.0100Ω | 13000mA | ||
| FAHPI0650-2R2M11R0 | 2.20uH | 0.0125Ω | 11000mA | ||
| FAHPI0650-3R3M10R0 | 3.30uH | 0.0220Ω | 10000mA | ||
| FAHPI0650-4R7M8R0 | 4.70uH | 0.0290Ω | 8000mA | ||
| FAHPI0650-6R8M6R3 | 6.80uH | 0.0410Ω | 6300mA | ||
| FAHPI0650-8R2M5R5 | 8.20uH | 0.0480Ω | 5500mA | ||
| FAHPI0650-100M5R3 | 10.00uH | 0.0600Ω | 5300mA | ||
| FAHPI0650-150M4R0 | 15.00uH | 0.0900Ω | 4000mA | ||
| FAHPI0650-220M3R5 | 22.00uH | 0.1400Ω | 3500mA | ||
| FAHPI0650-330M3R0 | 33.00uH | 0.1900Ω | 3000mA | ||
| FAHPI0650-470M2R6 | 47.00uH | 0.2300Ω | 2600mA | ||
| FAHPI0650-R47M21R0 | 0.47uH | 0.0039Ω | 21000mA | ||
| FAHPI0650-R68M18R0 | 0.68uH | 0.0045Ω | 18000mA | ||
| FAHPI1030 | 0.22-33.0uH | 0.0012-0.1600Ω | 4000-50000mA | - | - |
| FAHPI1030-1R0M21R0 | 1.00uH | 0.0060Ω | 21000mA | ||
| FAHPI1030-2R2M14R0 | 2.20uH | 0.0090Ω | 14000mA | ||
| FAHPI1030-3R3M12R0 | 3.30uH | 0.0160Ω | 12000mA | ||
| FAHPI1030-4R7M10R0 | 4.70uH | 0.0240Ω | 24000mA | ||
| FAHPI1030-8R2M7R0 | 8.20uH | 0.0450Ω | 7000mA | ||
| FAHPI1030-330M4R0 | 33.00uH | 0.1600Ω | 4000mA | ||
| FAHPI1030-R22M50R0 | 0.22uH | 0.0012Ω | 50000mA | ||
| FAHPI1030-R33M32R0 | 0.33uH | 0.0016Ω | 32000mA | ||
| FAHPI1030-R36M28R0 | 0.36uH | 0.0016Ω | 28000mA | ||
| FAHPI1030-R47M26R0 | 0.47uH | 0.0025Ω | 26000mA | ||
| FAHPI1030-R82M23R0 | 0.82uH | 0.0037Ω | 23000mA | ||
| FAHPI1040 | 0.22-68.0uH | 0.0010-0.195Ω | 3000-60000mA | - | |
| FAHPI1040-1R0M28R0 | 1.00uH | 0.0033Ω | 28000mA | ||
| FAHPI1040-1R5M24R0 | 1.50uH | 0.0042Ω | 24000mA | ||
| FAHPI1040-2R2M16R5 | 2.20uH | 0.0070Ω | 16500mA | ||
| FAHPI1040-3R3M16R0 | 3.30uH | 0.0118Ω | 16000mA | ||
| FAHPI1040-4R7M13R0 | 4.70uH | 0.0200Ω | 13000mA | ||
| FAHPI1040-6R8M12R0 | 6.80uH | 0.0250Ω | 12000mA | ||
| FAHPI1040-8R2M9R0 | 8.20uH | 0.0270Ω | 9000mA | ||
| FAHPI1040-100M8R5 | 10.00uH | 0.0350Ω | 8500mA | ||
| FAHPI1040-150M7R0 | 15.00uH | 0.0450Ω | 7000mA | ||
| FAHPI1040-220M5R5 | 22.00uH | 0.0660Ω | 5500mA | ||
| FAHPI1040-330M4R8 | 33.00uH | 0.0920Ω | 4800mA | ||
| FAHPI1040-470M3R5 | 47.00uH | 0.1450Ω | 3500mA | ||
| FAHPI1040-680M3R0 | 68.00uH | 0.1950Ω | 3000mA | ||
| FAHPI1040-R22M60R0 | 0.22uH | 0.0010Ω | 60000mA | ||
| FAHPI1040-R30M45R0 | 0.30uH | 0.0011Ω | 45000mA | ||
| FAHPI1040-R36M45R0 | 0.36uH | 0.0012Ω | 45000mA | ||
| FAHPI1040-R47M40R0 | 0.47uH | 0.0017Ω | 40000mA | - | |

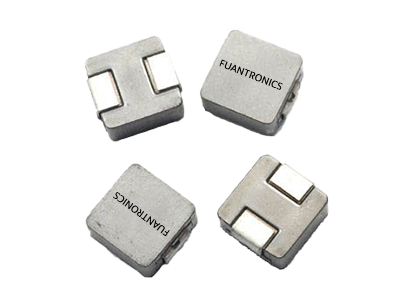

| FAHPI1040-R56M33R0 | 0.56uH | 0.0018Ω | 33000mA | - | |
| FAHPI1040-R68M30R0 | 0.68uH | 0.0024Ω | 30000mA | - | |
| FAHPI1040-R80M29R0 | 0.80uH | 0.0027Ω | 29000mA | - | |
| FAHPI1050 | 0.22-100.0uH | 0.0008-0.2900Ω | 2800-65000mA | - | - |
| FAHPI1050-1R0M30R0 | 1.00uH | 0.0030Ω | 30000mA | ||
| FAHPI1050-1R5M25R0 | 1.50uH | 0.0038Ω | 25000mA | ||
| FAHPI1050-2R2M19R0 | 2.20uH | 0.0060Ω | 19000mA | ||
| FAHPI1050-3R3M16R0 | 3.30uH | 0.0100Ω | 16000mA | ||
| FAHPI1050-4R7M15R0 | 4.70uH | 0.0140Ω | 15000mA | ||
| FAHPI1050-5R6M14R0 | 5.60uH | 0.0170Ω | 14000mA | ||
| FAHPI1050-6R8M14R0 | 6.80uH | 0.0185Ω | 14000mA | ||
| FAHPI1050-100M10R0 | 10.00uH | 0.0280Ω | 10000mA | ||
| FAHPI1050-101M2R8 | 100.00uH | 0.2900Ω | 2800mA | ||
| FAHPI1050-150M7R5 | 15.00uH | 0.0420Ω | 7500mA | ||
| FAHPI1050-220M6R0 | 22.00uH | 0.0500Ω | 6000mA | ||
| FAHPI1050-330M5R2 | 33.00uH | 0.0860Ω | 5200mA | ||
| FAHPI1050-470M4R5 | 47.00uH | 0.1270Ω | 4500mA | ||
| FAHPI1050-R22M65R0 | 0.22uH | 0.0008Ω | 65000mA | ||
| FAHPI1240 | 0.22-22.0uH | 0.0009-0.051Ω | 6000-48000mA | - | - |
| FAHPI1240-1R0M35R0 | 1.00uH | 0.0075Ω | 35000mA | ||
| FAHPI1240-1R5M30R5 | 1.50uH | 0.0095Ω | 30500mA | ||
| FAHPI1240-2R2M26R0 | 2.20uH | 0.0115Ω | 26000mA | ||
| FAHPI1240-3R3M21R0 | 3.30uH | 0.0130Ω | 21000mA | ||
| FAHPI1240-4R7M18R0 | 4.70uH | 0.0145Ω | 18000mA | ||
| FAHPI1240-6R8M14R0 | 6.80uH | 0.0200Ω | 14000mA | ||
| FAHPI1240-100M10R0 | 10.00uH | 0.0250Ω | 10000mA | ||
| FAHPI1240-150M7R5 | 15.00uH | 0.0390Ω | 7500mA | ||
| FAHPI1240-220M6R0 | 22.00uH | 0.0510Ω | 6000mA | ||
| FAHPI1240-R22M50R0 | 0.22uH | 0.0009Ω | 50000mA | ||
| FAHPI1240-R47M48R0 | 0.47uH | 0.0020Ω | 48000mA | ||
| FAHPI1240-R68M47R0 | 0.68uH | 0.0035Ω | 47000mA | ||
| FAHPI1240-R82M40R0 | 0.82uH | 0.0045Ω | 40000mA | ||
| FAHPI1250 | 0.22-47.00uH | 0.0007-0.13Ω | 3900-35000mA | - | - |
| FAHPI1250-1R0M35R0 | 1.00uH | 0.0022Ω | 35000mA | ||
| FAHPI1250-1R5M33R0 | 1.50uH | 0.0032Ω | 33000mA | ||
| FAHPI1250-2R2M24R0 | 2.20uH | 0.0050Ω | 24000mA | ||
| FAHPI1250-3R3M22R0 | 3.30uH | 0.0070Ω | 22000mA | ||
| FAHPI1250-4R7M20R0 | 4.70uH | 0.0090Ω | 20000mA | ||
| FAHPI1250-6R8M16R0 | 6.80uH | 0.0180Ω | 16000mA | ||
| FAHPI1250-8R2M13R0 | 8.20uH | 0.0200Ω | 13000mA | ||
| FAHPI1250-100M12R0 | 10.00uH | 0.0220Ω | 12000mA | ||
| FAHPI1250-150M10R0 | 15.00uH | 0.0300Ω | 10000mA | ||
| FAHPI1250-220M6R5 | 22.00uH | 0.0580Ω | 6500mA | ||
| FAHPI1250-330M6R0 | 33.00uH | 0.0840Ω | 6000mA | ||
| FAHPI1250-470M5R0 | 47.00uH | 0.1300Ω | 5000mA | ||
| FAHPI1250-R22M75R0 | 0.22uH | 0.0007Ω | 7500mA | ||
| FAHPI1250-R36M50R0 | 0.36uH | 0.0008Ω | 5000mA | ||
| FAHPI1250-R50M48R0 | 0.50uH | 0.0012Ω | 4800mA | ||
| FAHPI1250-R68M46R0 | 0.68uH | 0.0016Ω | 4600mA | ||
| FAHPI1250-R82M39R0 | 0.82uH | 0.0017Ω | 3900mA | ||
| FAHPI1260 | 4.70-150.00uH | 0.009-0.35Ω | 2700-24000mA | - | - |
| FAHPI1260-4R7M24R0 | 4.70uH | 0.0090Ω | 24000mA | ||
| FAHPI1260-5R6M22R5 | 5.60uH | 0.0110Ω | 22500mA | ||
| FAHPI1260-6R8M19R0 | 6.80uH | 0.0135Ω | 19000mA | ||
| FAHPI1260-8R2M13R5 | 8.20uH | 0.0160Ω | 13500mA | ||
| FAHPI1260-100M12R5 | 10.00uH | 0.0207Ω | 12500mA | ||
| FAHPI1260-101M3R5 | 100.00uH | 0.2000Ω | 3500mA | ||
| FAHPI1260-120M10R0 | 12.00uH | 0.0230Ω | 10000mA | ||
| FAHPI1260-121M3R2 | 120.00uH | 0.2350Ω | 3200mA | ||
| FAHPI1260-150M9R0 | 15.00uH | 0.0290Ω | 9000mA | ||
| FAHPI1260-151M2R7 | 150.00uH | 0.3500Ω | 2700mA | ||
| FAHPI1260-180M8R0 | 18.00uH | 0.0350Ω | 8000mA | ||
| FAHPI1260-220M7R5 | 22.00uH | 0.0395Ω | 7500mA | ||
| FAHPI1260-270M6R5 | 27.00uH | 0.0560Ω | 6500mA | ||
| FAHPI1260-330M6R0 | 33.00uH | 0.0750Ω | 6000mA | ||
| FAHPI1260-470M5R5 | 47.00uH | 0.0900Ω | 5500mA | ||
| FAHPI1260-680M4R5 | 68.00uH | 0.1400Ω | 4500mA | ||
| FAHPI1265 | 4.70-100.00uH | 0.0085-0.17Ω | 4000-24000mA | - | - |
| FAHPI1265-4R7M24R0 | 4.70uH | 0.0085Ω | 24000mA | ||
| FAHPI1265-5R6M22R5 | 5.60uH | 0.0105Ω | 22500mA | ||
| FAHPI1265-6R8M19R0 | 6.80uH | 0.0120Ω | 19000mA | ||
| FAHPI1265-8R2M16R0 | 8.20uH | 0.0140Ω | 16000mA | ||
| FAHPI1265-100M15R0 | 10.00uH | 0.0165Ω | 15000mA | ||
| FAHPI1265-101M4R0 | 100.00uH | 0.1700Ω | 4000mA | ||
| FAHPI1265-150M11R0 | 15.00uH | 0.0260Ω | 11000mA | ||
| FAHPI1265-220M9R0 | 22.00uH | 0.0360Ω | 9000mA | ||
| FAHPI1265-330M8R0 | 33.00uH | 0.0650Ω | 8000mA | ||
| FAHPI1265-470M6R8 | 47.00uH | 0.0700Ω | 6800mA | ||
| FAHPI1265-680M5R2 | 68.00uH | 0.1200Ω | 5200mA | ||
| FAHPI1265-820M4R5 | 82.00uH | 0.1350Ω | 4500mA | ||
| FAHPI1770 | 2.20-100.00uH | 0.0025-0.1300Ω | 6500-34000mA | - | - |
| FAHPI1770-2R2M34R0 | 2.20uH | 0.0025Ω | 34000mA | ||
| FAHPI1770-3R3M30R0 | 3.30uH | 0.0039Ω | 30000mA | ||
| FAHPI1770-4R7M24R0 | 4.70uH | 0.0048Ω | 24000mA | ||
| FAHPI1770-6R8M22R0 | 6.80uH | 0.0075Ω | 22000mA | ||
| FAHPI1770-8R2M20R0 | 8.20uH | 0.0087Ω | 20000mA | ||
| FAHPI1770-100M19R0 | 10.00uH | 0.0099Ω | 19000mA | ||
| FAHPI1770-101M5R0 | 100.00uH | 0.1300Ω | 5000mA | ||
| FAHPI1770-150M14R5 | 15.00uH | 0.0170Ω | 14500mA | ||
| FAHPI1770-220M11R5 | 22.00uH | 0.0230Ω | 11500mA | ||
| FAHPI1770-330M10R0 | 33.00uH | 0.0370Ω | 10000mA | ||
| FAHPI1770-470M7R5 | 47.00uH | 0.0470Ω | 7500mA | ||
| FAHPI1770-680M6R5 | 68.00uH | 0.0850Ω | 6500mA | ||
| FALQH-1210 | 0.1-560uH | 0.25-28.0Ω | 40-700mA | - | - |
| FALQH-1210-1R0M | 1.00uH | 0.5000Ω | 445mA | ||
| FALQH-1210-1R2M | 1.20uH | 0.6000Ω | 425mA | ||
| FALQH-1210-1R5M | 1.50uH | 0.6000Ω | 400mA | ||
| FALQH-1210-1R8M | 1.80uH | 0.7000Ω | 390mA | ||
| FALQH-1210-2R2M | 2.20uH | 0.8000Ω | 370mA | ||
| FALQH-1210-2R7M | 2.70uH | 0.9000Ω | 320mA | ||
| FALQH-1210-3R3M | 3.30uH | 1.0000Ω | 300mA | ||
| FALQH-1210-3R9M | 3.90uH | 1.1000Ω | 290mA | ||
| FALQH-1210-4R7K | 4.70uH | 1.2000Ω | 270mA | ||
| FALQH-1210-5R6K | 5.60uH | 1.3000Ω | 250mA | ||
| FALQH-1210-6R8K | 6.80uH | 1.5000Ω | 240mA | ||
| FALQH-1210-8R2K | 8.20uH | 1.6000Ω | 225mA | ||
| FALQH-1210-100K | 10.00uH | 1.8000Ω | 190mA | ||
| FALQH-1210-101K | 100.00uH | 7.0000Ω | 80mA | ||
| FALQH-1210-120K | 12.00uH | 2.0000Ω | 180mA | ||
| FALQH-1210-121K | 120.00uH | 8.0000Ω | 75mA | ||
| FALQH-1210-150K | 15.00uH | 2.2000Ω | 170mA | ||
| FALQH-1210-151K | 150.00uH | 9.3000Ω | 70mA | ||
| FALQH-1210-180K | 18.00uH | 2.5000Ω | 165mA | ||
| FALQH-1210-181K | 180.00uH | 10.2000Ω | 65mA | ||
| FALQH-1210-220K | 22.00uH | 2.8000Ω | 150mA | ||
| FALQH-1210-221K | 220.00uH | 11.8000Ω | 65mA | ||
| FALQH-1210-270K | 27.00uH | 3.1000Ω | 125mA | ||
| FALQH-1210-271K | 270.00uH | 12.5000Ω | 65mA | ||
| FALQH-1210-330K | 33.00uH | 3.5000Ω | 115mA | ||
| FALQH-1210-331K | 330.00uH | 13.0000Ω | 65mA | ||
| FALQH-1210-390K | 39.00uH | 3.9000Ω | 110mA | ||
| FALQH-1210-391K | 390.00uH | 22.0000Ω | 50mA | ||
| FALQH-1210-470K | 47.00uH | 4.3000Ω | 100mA | ||
| FALQH-1210-471K | 470.00uH | 24.7000Ω | 45mA | ||
| FALQH-1210-560K | 56.00uH | 4.9000Ω | 85mA | ||
| FALQH-1210-561K | 560.00uH | 28.0000Ω | 40mA | ||
| FALQH-1210-680K | 68.00uH | 5.5000Ω | 80mA | ||
| FALQH-1210-820K | 82.00uH | 6.2000Ω | 70mA | ||
| FALQH-1210-R10M | 0.10uH | 0.2500Ω | 700mA | ||
| FALQH-1210-R18M | 0.18uH | 0.2500Ω | 650mA | ||
| FALQH-1210-R27M | 0.27uH | 0.2500Ω | 600mA | ||
| FALQH-1210-R39M | 0.39uH | 0.2500Ω | 530mA | ||
| FALQH-1210-R56M | 0.56uH | 0.2500Ω | 530mA | ||
| FALQH-1210-R68M | 0.68uH | 0.2500Ω | 470mA | ||
| FALQH-1210-R82M | 0.82uH | 0.2500Ω | 450mA | ||
| FALQH-1812 | 1.0-2200uH | 0.00094-30Ω | 30-550mA | - | - |
| FALQH-1812-1R0M | 1.00uH | 0.2000Ω | 550mA | ||
| FALQH-1812-1R2M | 1.20uH | 0.2500Ω | 530mA | ||
| FALQH-1812-1R5M | 1.50uH | 0.2800Ω | 500mA | ||
| FALQH-1812-1R8M | 1.80uH | 0.3000Ω | 500mA | ||
| FALQH-1812-2R2M | 2.20uH | 0.3000Ω | 500mA | ||
| FALQH-1812-2R7M | 2.70uH | 0.3200Ω | 500mA | ||
| FALQH-1812-3R3M | 3.30uH | 0.3500Ω | 500mA | ||
| FALQH-1812-3R9M | 3.90uH | 0.3800Ω | 500mA | ||
| FALQH-1812-4R7K | 4.70uH | 0.4000Ω | 500mA | ||
| FALQH-1812-5R6K | 5.60uH | 0.4700Ω | 500mA | ||
| FALQH-1812-6R8K | 6.80uH | 0.5000Ω | 500mA | ||
| FALQH-1812-8R2K | 8.20uH | 0.5600Ω | 500mA | ||
| FALQH-1812-100K | 10.00uH | 0.5600Ω | 450mA | ||
| FALQH-1812-101K | 100.00uH | 2.5000Ω | 175mA | ||
| FALQH-1812-102K | 1000.00uH | 25.000Ω | 50mA | ||
| FALQH-1812-120K | 12.00uH | 0.6200Ω | 450mA | ||
| FALQH-1812-121K | 120.00uH | 3.0000Ω | 165mA | ||
| FALQH-1812-122K | 1200.00uH | 30.0000Ω | 45mA | ||
| FALQH-1812-150K | 15.00uH | 0.7300Ω | 390mA | ||
| FALQH-1812-152K | 1500.00uH | 0.0370Ω | 40mA | ||
| FALQH-1812-180K | 18.00uH | 0.0082Ω | 370mA | ||
| FALQH-1812-181K | 180.00uH | 0.0045Ω | 135mA | ||
| FALQH-1812-182K | 180.00uH | 0.0450Ω | 35mA | ||
| FALQH-1812-220K | 22.00uH | 0.00094Ω | 350mA | ||
| FALQH-1812-221K | 220.00uH | 0.0054Ω | 125mA | ||
| FALQH-1812-222K | 2200.00uH | 0.0500Ω | 30mA | ||
| FALQH-1812-270K | 27.00uH | 0.0011Ω | 330mA | ||
| FALQH-1812-271K | 270.00uH | 0.0068Ω | 115mA | ||
| FALQH-1812-330K | 33.00uH | 0.0012Ω | 310mA | ||
| FALQH-1812-331K | 330.00uH | 0.0082Ω | 100mA | ||
| FALQH-1812-390K | 39.00uH | 0.0014Ω | 280mA | ||
| FALQH-1812-391K | 390.00uH | 0.0097Ω | 90mA | ||
| FALQH-1812-470K | 47.00uH | 0.0015Ω | 250mA | ||
| FALQH-1812-471K | 470.00uH | 0.0120Ω | 80mA | ||
| FALQH-1812-560K | 56.00uH | 0.0017Ω | 225mA | ||
| FALQH-1812-561K | 560.00uH | 0.0150Ω | 70mA | ||
| FALQH-1812-680K | 68.00uH | 0.0019Ω | 225mA | ||
| FALQH-1812-681K | 680.00uH | 0.0170Ω | 65mA | ||
| FALQH-1812-820K | 82.00uH | 0.0022Ω | 185mA | ||
| FALQH-1812-821K | 820.00uH | 0.0210Ω | 60mA | ||
| FALQH-2220 | 0.12-10000uH | 0.0100-140.0000Ω | 50-6000mA | - | - |
| FALQH-2220-1R0M | 1.00uH | 0.0270Ω | 4000mA | ||
| FALQH-2220-1R5M | 1.50uH | 0.0310Ω | 3700mA | ||
| FALQH-2220-2R2M | 2.20uH | 0.0410Ω | 3200mA | ||
| FALQH-2220-3R3M | 3.30uH | 0.0500Ω | 2900mA | ||
| FALQH-2220-4R7M | 4.70uH | 0.0570Ω | 2700mA | ||
| FALQH-2220-6R8M | 6.80uH | 0.1000Ω | 2000mA | ||
| FALQH-2220-100K | 10.00uH | 0.1300Ω | 1700mA | ||
| FALQH-2220-101K | 100.00uH | 1.2000Ω | 560mA | ||
| FALQH-2220-102K | 1000.00uH | 14.4000Ω | 150mA | ||
| FALQH-2220-103K | 10000.00uH | 140.0000Ω | 50mA | ||
| FALQH-2220-150K | 15.00uH | 0.2100Ω | 1400mA | ||
| FALQH-2220-151K | 150.00uH | 2.6600Ω | 420mA | ||
| FALQH-2220-152K | 1500.00uH | 30.1000Ω | 100mA | ||
| FALQH-2220-220K | 22.00uH | 0.2700Ω | 1200mA | ||
| FALQH-2220-221K | 220.00uH | 3.3600Ω | 320mA | ||
| FALQH-2220-222K | 2200.00uH | 45.0000Ω | 90mA | ||
| FALQH-2220-330K | 33.00uH | 0.4500Ω | 900mA | ||
| FALQH-2220-331K | 330.00uH | 6.1600Ω | 270mA | ||
| FALQH-2220-332K | 3300.00uH | 50.0000Ω | 80mA | ||
| FALQH-2220-470K | 47.00uH | 0.5600Ω | 800mA | ||
| FALQH-2220-471K | 470.00uH | 7.5600Ω | 240mA | ||
| FALQH-2220-472K | 4700.00uH | 61.0000Ω | 70mA | ||
| FALQH-2220-680K | 68.00uH | 0.9400Ω | 640mA | ||
| FALQH-2220-681K | 680.00uH | 11.3000Ω | 190mA | ||
| FALQH-2220-682K | 6800.00uH | 100.0000Ω | 60mA | ||
| FALQH-2220-822K | 8200.00uH | 125.0000Ω | 50mA | ||
| FALQH-2220-R12M | 0.12uH | 0.0100Ω | 6000mA | ||
| FALQH-2220-R27M | 0.27uH | 0.0140Ω | 5300mA | ||
| FALQH-2220-R47M | 0.47uH | 0.0180Ω | 4800mA | ||
| FAMPI0412 | 0.10-10.0uH | 0.0055-0.4630Ω | 1400-25000mA | - | - |
| FAMPI0412-1R0M6R0 | 1.00uH | 0.0500Ω | 6000mA | ||
| FAMPI0412-1R5M4R0 | 1.50uH | 0.0730Ω | 4000mA | ||
| FAMPI0412-2R2M3R5 | 2.20uH | 0.0800Ω | 3500mA | ||
| FAMPI0412-3R3M3R0 | 3.30uH | 0.0970Ω | 3000mA | ||
| FAMPI0412-4R7M2R5 | 4.70uH | 0.1850Ω | 2500mA | ||
| FAMPI0412-5R6M2R3 | 5.60uH | 0.2080Ω | 2300mA | ||
| FAMPI0412-6R8M1R7 | 6.80uH | 0.3600Ω | 1700mA | ||
| FAMPI0412-8R2M1R6 | 8.20uH | 0.3760Ω | 1600mA | ||
| FAMPI0412-100M1R4 | 10.00uH | 0.4630Ω | 1400mA | ||
| FAMPI0412-R10M25R0 | 0.10uH | 0.0055Ω | 25000mA | ||
| FAMPI0412-R22M20R0 | 0.22uH | 0.0120Ω | 20000mA | ||
| FAMPI0412-R47M6R5 | 0.47uH | 0.0200Ω | 6500mA | ||
| FAMPI0420 | 0.10-22.0uH | 0.004-0.500Ω | 1400-35000mA | - | - |
| FAMPI0420-1R0M8R5 | 1.00uH | 0.0275Ω | 8500mA | ||
| FAMPI0420-1R2M7R8 | 1.20uH | 0.0300Ω | 7800mA | ||
| FAMPI0420-1R5M7R0 | 1.50uH | 0.0420Ω | 7000mA | ||
| FAMPI0420-2R2M6R0 | 2.20uH | 0.0610Ω | 6000mA | ||
| FAMPI0420-3R3M4R0 | 3.30uH | 0.0900Ω | 4000mA | ||
| FAMPI0420-4R7M3R5 | 4.70uH | 0.1050Ω | 3500mA | ||
| FAMPI0420-5R6M3R0 | 5.60uH | 0.1250Ω | 3000mA | ||
| FAMPI0420-6R8M2R8 | 6.80uH | 0.1720Ω | 2800mA | ||
| FAMPI0420-8R2M2R5 | 8.20uH | 0.1800Ω | 2500mA | ||
| FAMPI0420-100M2R3 | 10.00uH | 0.2430Ω | 2300mA | ||
| FAMPI0420-150M1R9 | 15.00uH | 0.3740Ω | 1900mA | ||
| FAMPI0420-220M1R4 | 22.00uH | 0.5000Ω | 1400mA | ||
| FAMPI0420-R10M35R0 | 0.10uH | 0.0040Ω | 35000mA | ||
| FAMPI0420-R18M28R0 | 0.18uH | 0.0054Ω | 28000mA | ||
| FAMPI0420-R22M24R0 | 0.22uH | 0.0073Ω | 24000mA | ||
| FAMPI0420-R33M18R0 | 0.33uH | 0.0086Ω | 18000mA | ||
| FAMPI0420-R47M12R0 | 0.47uH | 0.0140Ω | 12000mA | ||
| FAMPI0420-R56M10R0 | 0.56uH | 0.0170Ω | 10000mA | ||
| FAMPI0420-R68M10R0 | 0.68uH | 0.0190Ω | 10000mA | ||
| FAMPI0512 | 0.10-10.0uH | 0.0052-0.385Ω | 1800-14500mA | - | - |
| FAMPI0512-1R0M6R0 | 1.00uH | 0.0300Ω | 6000mA | ||
| FAMPI0512-1R2M5R5 | 1.20uH | 0.0400Ω | 5500mA | ||
| FAMPI0512-1R5M5R0 | 1.50uH | 0.0440Ω | 5000mA | ||
| FAMPI0512-2R2M4R0 | 2.20uH | 0.0750Ω | 4000mA | ||
| FAMPI0512-3R3M3R8 | 3.30uH | 0.0860Ω | 3800mA | ||
| FAMPI0512-4R7M3R2 | 4.70uH | 0.1150Ω | 3200mA | ||
| FAMPI0512-5R6M3R2 | 5.60uH | 0.2010Ω | 3200mA | ||
| FAMPI0512-6R8M3R0 | 6.80uH | 0.2220Ω | 3000mA | ||
| FAMPI0512-8R2M2R8 | 8.20uH | 0.3780Ω | 2800mA | ||
| FAMPI0512-100M1R8 | 10.00uH | 0.3850Ω | 1800mA | ||
| FAMPI0512-R10M14R5 | 0.10uH | 0.0052Ω | 14500mA | ||
| FAMPI0512-R22M14R0 | 0.22uH | 0.0067Ω | 14000mA | ||
| FAMPI0512-R33M13R5 | 0.33uH | 0.0094Ω | 13500mA | ||
| FAMPI0512-R36M13R0 | 0.36uH | 0.0115Ω | 13000mA | ||
| FAMPI0512-R47M11R0 | 0.47uH | 0.0158Ω | 11000mA | ||
| FAMPI0512-R68M9R0 | 0.68uH | 0.0245Ω | 9000mA | ||
| FAMPI0515 | 0.33-10.0uH | 0.0098-0.2350Ω | 2300-16000mA | - | - |
| FAMPI0515-1R0M9R0 | 1.00uH | 0.0253Ω | 9000mA | ||
| FAMPI0515-1R5M7R0 | 1.50uH | 0.0450Ω | 7000mA | ||
| FAMPI0515-2R2M6R0 | 2.20uH | 0.0520Ω | 6000mA | ||
| FAMPI0515-3R3M4R5 | 3.30uH | 0.0900Ω | 4500mA | ||
| FAMPI0515-4R7M4R0 | 4.70uH | 0.1180Ω | 4000mA | ||
| FAMPI0515-5R6M3R2 | 5.60uH | 0.1520Ω | 3200mA | ||
| FAMPI0515-6R8M3R0 | 6.80uH | 0.1710Ω | 3000mA | ||
| FAMPI0515-8R2M2R6 | 8.20uH | 0.2100Ω | 2600mA | ||
| FAMPI0515-100M2R3 | 10.00uH | 0.2350Ω | 2300mA | ||
| FAMPI0515-R33M16R0 | 0.33uH | 0.0098Ω | 16000mA | ||
| FAMPI0515-R47M15R0 | 0.47uH | 0.0138Ω | 15000mA | ||
| FAMPI0515-R68M13R0 | 0.68uH | 0.0162Ω | 13000mA | ||
| FAMPI0518 | 0.33-10.0uH | 0.0086-0.1900Ω | 2800-15000mA | - | - |
| FAMPI0518-1R0M10R0 | 1.00uH | 0.0210Ω | 10000mA | ||
| FAMPI0518-1R5M9R0 | 1.50uH | 0.0300Ω | 9000mA | ||
| FAMPI0518-2R2M7R5 | 2.20uH | 0.0483Ω | 7500mA | ||
| FAMPI0518-3R3M5R0 | 3.30uH | 0.0690Ω | 5000mA | ||
| FAMPI0518-4R7M4R5 | 4.70uH | 0.0980Ω | 4500mA | ||
| FAMPI0518-5R6M4R0 | 5.60uH | 0.1270Ω | 4000mA | ||
| FAMPI0518-6R8M3R5 | 6.80uH | 0.1370Ω | 3500mA | ||
| FAMPI0518-8R2M3R0 | 8.20uH | 0.1650Ω | 3000mA | ||
| FAMPI0518-100M2R8 | 10.00uH | 0.1900Ω | 2800mA | ||
| FAMPI0518-R33M15R0 | 0.33uH | 0.0086Ω | 15000mA | ||
| FAMPI0518-R47M14R0 | 0.47uH | 0.0113Ω | 14000mA | ||
| FAMPI0518-R68M13R0 | 0.68uH | 0.0143Ω | 13000mA | ||
| FAMPI0520 | 0.33-10.00uH | 0.0073-0.1890Ω | 3400-21300mA | - | - |
| FAMPI0520-1R0M11R7 | 1.00uH | 0.0192Ω | 11700mA | ||
| FAMPI0520-1R2M11R0 | 1.20uH | 0.0280Ω | 11000mA | ||
| FAMPI0520-1R5M9R8 | 1.50uH | 0.0305Ω | 9800mA | ||
| FAMPI0520-2R2M9R0 | 2.20uH | 0.0500Ω | 9000mA | ||
| FAMPI0520-3R3M7R3 | 3.30uH | 0.0700Ω | 7300mA | ||
| FAMPI0520-4R7M5R0 | 4.70uH | 0.1060Ω | 5000mA | ||
| FAMPI0520-5R6M4R0 | 5.60uH | 0.1220Ω | 4000mA | ||
| FAMPI0520-6R8M3R8 | 6.80uH | 0.1450Ω | 3800mA | ||
| FAMPI0520-8R2M3R5 | 8.20uH | 0.1680Ω | 3500mA | ||
| FAMPI0520-100M3R4 | 10.00uH | 0.1890Ω | 3400mA | ||
| FAMPI0520-R33M21R3 | 0.33uH | 0.0073Ω | 21300mA | ||
| FAMPI0520-R47M18R0 | 0.47uH | 0.0086Ω | 18000mA | ||
| FAMPI0520-R68M12R8 | 0.68uH | 0.01240Ω | 12800mA | ||
| FAMPI0530 | 0.33-10.00uH | 0.0050-0.1260Ω | 3500-18000mA | - | - |
| FAMPI0530-1R0M11R0 | 1.00uH | 0.0135Ω | 11000mA | ||
| FAMPI0530-1R2M11R0 | 1.20uH | 0.0155Ω | 11000mA | ||
| FAMPI0530-1R5M10R0 | 1.50uH | 0.0230Ω | 10000mA | ||
| FAMPI0530-2R2M9R0 | 2.20uH | 0.0350Ω | 9000mA | ||
| FAMPI0530-3R3M8R0 | 3.30uH | 0.0380Ω | 8000mA | ||
| FAMPI0530-4R7M6R0 | 4.70uH | 0.0530Ω | 6000mA | ||
| FAMPI0530-5R6M6R0 | 5.60uH | 0.0630Ω | 6000mA | ||
| FAMPI0530-6R8M4R3 | 6.80uH | 0.0762Ω | 4300mA | ||
| FAMPI0530-100M3R5 | 10.00uH | 0.1260Ω | 3500mA | ||
| FAMPI0530-R33M18R0 | 0.33uH | 0.0050Ω | 18000mA | ||
| FAMPI0530-R47M16R0 | 0.47uH | 0.0074Ω | 16000mA | ||
| FAMPI0530-R68M14R0 | 0.68uH | 0.0115Ω | 14000mA | ||
| FAMPI0612 | 0.22-10.00uH | 0.0075-0.2900Ω | 2500-19000mA | - | - |
| FAMPI0612-1R0M7R0 | 1.00uH | 0.0300Ω | 7000mA | ||
| FAMPI0612-1R2M6R8 | 1.20uH | 0.0360Ω | 6800mA | ||
| FAMPI0612-1R5M6R5 | 1.50uH | 0.0400Ω | 6500mA | ||
| FAMPI0612-2R2M5R0 | 2.20uH | 0.0610Ω | 5000mA | ||
| FAMPI0612-3R3M4R0 | 3.30uH | 0.1000Ω | 4000mA | ||
| FAMPI0612-4R7M3R8 | 4.70uH | 0.1500Ω | 3800mA | ||
| FAMPI0612-6R8M3R0 | 6.80uH | 0.1980Ω | 3000mA | ||
| FAMPI0612-100M2R5 | 10.00uH | 0.2900Ω | 2500mA | ||
| FAMPI0612-R22M19R0 | 0.22uH | 0.0075Ω | 19000mA | ||
| FAMPI0612-R33M16R0 | 0.33uH | 0.0100Ω | 16000mA | ||
| FAMPI0612-R47M12R0 | 0.47uH | 0.0170Ω | 12000mA | ||
| FAMPI0612-R68M9R0 | 0.68uH | 0.0190Ω | 9000mA | ||
| FAMPI0615 | 0.22-10.00uH | 0.0052-0.2160Ω | 2800-22000mA | - | - |
| FAMPI0615-1R0M12R0 | 1.00uH | 0.0258Ω | 12000mA | ||
| FAMPI0615-1R2M10R5 | 1.20uH | 0.0340Ω | 10500mA | ||
| FAMPI0615-1R5M9R5 | 1.50uH | 0.0425Ω | 9500mA | ||
| FAMPI0615-2R2M6R5 | 2.20uH | 0.0540Ω | 6500mA | ||
| FAMPI0615-3R3M6R0 | 3.30uH | 0.0700Ω | 6000mA | ||
| FAMPI0615-4R7M5R0 | 4.70uH | 0.1080Ω | 5000mA | ||
| FAMPI0615-5R6M4R5 | 5.60uH | 0.1380Ω | 4500mA | ||
| FAMPI0615-6R8M3R5 | 6.80uH | 0.1460Ω | 3500mA | ||
| FAMPI0615-8R2M3R2 | 8.20uH | 0.1840Ω | 3200mA | ||
| FAMPI0615-100M2R8 | 10.00uH | 0.2160Ω | 2800mA | ||
| FAMPI0615-R22M22R0 | 0.22uH | 0.0052Ω | 22000mA | ||
| FAMPI0615-R33M18R0 | 0.33uH | 0.0076Ω | 18000mA | ||
| FAMPI0615-R47M16R0 | 0.47uH | 0.0103Ω | 16000mA | ||
| FAMPI0615-R68M15R0 | 0.68uH | 0.0152Ω | 15000mA | ||
| FAMPI0618 | 0.33-10.00uH | 0.0058-0.1600Ω | 3500-22000mA | - | - |
| FAMPI0618-1R0M14R0 | 1.00uH | 0.0170Ω | 14000mA | ||
| FAMPI0618-1R2M13R5 | 1.20uH | 0.0240Ω | 13500mA | ||
| FAMPI0618-1R5M13R0 | 1.50uH | 0.0252Ω | 13000mA | ||
| FAMPI0618-2R2M11R0 | 2.20uH | 0.0350Ω | 11000mA | ||
| FAMPI0618-3R3M9R0 | 3.30uH | 0.0460Ω | 9000mA | ||
| FAMPI0618-4R7M7R0 | 4.70uH | 0.0760Ω | 7000mA | ||
| FAMPI0618-5R6M6R0 | 5.60uH | 0.0860Ω | 6000mA | ||
| FAMPI0618-6R8M5R5 | 6.80uH | 0.1040Ω | 5500mA | ||
| FAMPI0618-8R2M4R5 | 8.20uH | 0.1400Ω | 4500mA | ||
| FAMPI0618-100M3R5 | 10.00uH | 0.1600Ω | 3500mA | ||
| FAMPI0618-R33M22R0 | 0.33uH | 0.0058Ω | 22000mA | ||
| FAMPI0618-R47M18R0 | 0.47uH | 0.0074Ω | 18000mA | ||
| FAMPI0618-R68M17R0 | 0.68uH | 0.0110Ω | 17000mA | ||
| FAMPI0618-R82M15R5 | 0.82uH | 0.0140Ω | 15500mA | ||
| FAMPI0620 | 0.10-22.0uH | 0.0024-0.28Ω | 2500-40000mA | - | - |
| FAMPI0620-1R0M14R0 | 1.00uH | 0.0165Ω | 14000mA | ||
| FAMPI0620-1R5M12R0 | 1.50uH | 0.0245Ω | 12000mA | ||
| FAMPI0620-2R2M10R0 | 2.20uH | 0.0340Ω | 10000mA | ||
| FAMPI0620-3R3M8R0 | 3.30uH | 0.0480Ω | 8000mA | ||
| FAMPI0620-4R7M7R0 | 4.70uH | 0.0595Ω | 7000mA | ||
| FAMPI0620-5R6M6R0 | 5.60uH | 0.0680Ω | 6000mA | ||
| FAMPI0620-6R8M5R5 | 6.80uH | 0.0730Ω | 5500mA | ||
| FAMPI0620-8R2M5R0 | 8.20uH | 0.1160Ω | 5000mA | ||
| FAMPI0620-100M4R0 | 10.00uH | 0.1540Ω | 4000mA | ||
| FAMPI0620-220M2R5 | 22.00uH | 0.2800Ω | 2500mA | ||
| FAMPI0620-R10M40R0 | 0.10uH | 0.0024Ω | 40000mA | ||
| FAMPI0620-R20M35R0 | 0.20uH | 0.0030Ω | 35000mA | ||
| FAMPI0620-R33M25R0 | 0.33uH | 0.0050Ω | 25000mA | ||
| FAMPI0620-R47M20R0 | 0.47uH | 0.0083Ω | 20000mA | ||
| FAMPI0620-R68M16R0 | 0.68uH | 0.0100Ω | 16000mA | ||
| FAMPI0624 | 0.10-22.0uH | 0.0017-0.215Ω | 3000-70000mA | - | - |
| FAMPI0624-1R0M16R0 | 1.00uH | 0.0135Ω | 16000mA | ||
| FAMPI0624-1R5M15R0 | 1.50uH | 0.0207Ω | 15000mA | ||
| FAMPI0624-2R2M14R0 | 2.20uH | 0.0275Ω | 14000mA | ||
| FAMPI0624-3R3M10R0 | 3.30uH | 0.0378Ω | 10000mA | ||
| FAMPI0624-4R7M9R0 | 4.70uH | 0.0500Ω | 9000mA | ||
| FAMPI0624-5R6M8R0 | 5.60uH | 0.0620Ω | 8000mA | ||
| FAMPI0624-6R8M7R0 | 6.80uH | 0.0705Ω | 7000mA | ||
| FAMPI0624-8R2M6R0 | 8.20uH | 0.0950Ω | 6000mA | ||
| FAMPI0624-100M5R0 | 10.00uH | 0.1010Ω | 5000mA | ||
| FAMPI0624-220M3R0 | 22.00uH | 0.2150Ω | 3000mA | ||
| FAMPI0624-R10M70R0 | 0.10uH | 0.0017Ω | 70000mA | ||
| FAMPI0624-R15M45R0 | 0.15uH | 0.0023Ω | 45000mA | ||
| FAMPI0624-R20M40R0 | 0.20uH | 0.0028Ω | 40000mA | ||
| FAMPI0624-R22M34R0 | 0.22uH | 0.0032Ω | 34000mA | ||
| FAMPI0624-R33M30R0 | 0.33uH | 0.0044Ω | 30000mA | ||
| FAMPI0624-R36M29R0 | 0.36uH | 0.0046Ω | 29000mA | ||
| FAMPI0624-R47M26R0 | 0.47uH | 0.0055Ω | 26000mA | ||
| FAMPI0624-R56M24R0 | 0.56uH | 0.0068Ω | 24000mA | ||
| FAMPI0624-R60M22R0 | 0.60uH | 0.0069Ω | 22000mA | ||
| FAMPI0624-R68M21R0 | 0.68uH | 0.072Ω | 21000mA | ||
| FAMPI0624-R82M17R0 | 0.82uH | 0.0095Ω | 17000mA | ||
| FAMPI0630 | 0.22-22.0uH | 0.0028-0.186Ω | 3500-40000mA | - | - |
| FAMPI0630-1R0M22R0 | 1.00uH | 0.0095Ω | 22000mA | ||
| FAMPI0630-1R5M18R0 | 1.50uH | 0.0150Ω | 18000mA | ||
| FAMPI0630-1R8M16R0 | 1.80uH | 0.0170Ω | 16000mA | ||
| FAMPI0630-2R2M14R0 | 2.20uH | 0.0200Ω | 14000mA | ||
| FAMPI0630-2R5M13R0 | 2.50uH | 0.0220Ω | 13000mA | ||
| FAMPI0630-3R3M12R5 | 3.30uH | 0.0295Ω | 12500mA | ||
| FAMPI0630-4R7M10R0 | 4.70uH | 0.0395Ω | 10000mA | ||
| FAMPI0630-5R6M9R0 | 5.60uH | 0.0475Ω | 9000mA | ||
| FAMPI0630-6R8M8R0 | 6.80uH | 0.0550Ω | 8000mA | ||
| FAMPI0630-8R2M7R5 | 8.20uH | 0.0680Ω | 7500mA | ||
| FAMPI0630-100M6R0 | 10.00uH | 0.0832Ω | 6000mA | ||
| FAMPI0630-220M3R5 | 22.00uH | 0.1860Ω | 3500mA | ||
| FAMPI0630-R22M40R0 | 0.22uH | 0.0028Ω | 40000mA | ||
| FAMPI0630-R33M32R0 | 0.33uH | 0.0039Ω | 32000mA | ||
| FAMPI0630-R47M26R0 | 0.47uH | 0.0042Ω | 26000mA | ||
| FAMPI0630-R56M25R5 | 0.56uH | 0.0050Ω | 25500mA | ||
| FAMPI0630-R68M25R0 | 0.68uH | 0.0055Ω | 25000mA | ||
| FAMPI0630-R75M24R5 | 0.75uH | 0.0066Ω | 24500mA | ||
| FAMPI0630-R82M24R0 | 0.82uH | 0.0078Ω | 24000mA | ||
| FAMPI0650 | 0.47-22uH | 0.0039-0.16Ω | 5500-30000mA | - | - |
| FAMPI0650-1R0M20R2 | 1.00uH | 0.0065Ω | 20200mA | ||
| FAMPI0650-1R2M18R0 | 1.20uH | 0.0075Ω | 18000mA | ||
| FAMPI0650-1R5M16R5 | 1.50uH | 0.0090Ω | 16500mA | ||
| FAMPI0650-1R8M15R0 | 1.80uH | 0.0110Ω | 15000mA | ||
| FAMPI0650-2R2M14R0 | 2.20uH | 0.0116Ω | 14000mA | ||
| FAMPI0650-3R3M12R0 | 3.30uH | 0.0209Ω | 12000mA | ||
| FAMPI0650-4R7M10R0 | 4.70uH | 0.0302Ω | 10000mA | ||
| FAMPI0650-5R6M9R0 | 5.60uH | 0.0490Ω | 9000mA | ||
| FAMPI0650-6R8M8R5 | 6.80uH | 0.0505Ω | 8500mA | ||
| FAMPI0650-8R2M8R0 | 8.20uH | 0.0600Ω | 8000mA | ||
| FAMPI0650-100M7R5 | 10.00uH | 0.0690Ω | 7500mA | ||
| FAMPI0650-220M5R5 | 22.00uH | 0.1600Ω | 5500mA | ||
| FAMPI0650-R47M30R0 | 0.47uH | 0.0039Ω | 30000mA | ||
| FAMPI0650-R56M27R0 | 0.56uH | 0.0042Ω | 27000mA | ||
| FAMPI0650-R60M25R0 | 0.60uH | 0.0043Ω | 25000mA | ||
| FAMPI0650-R68M24R0 | 0.68uH | 0.0045Ω | 24000mA | ||
| FAMPI0650-R82M22R0 | 0.82uH | 0.0049Ω | 22000mA | ||
| FAMPI1040 | 0.15-5.60uH | 0.00065-0.0193Ω | 18000-100000mA | - | - |
| FAMPI1040-1R0M41R0 | 1.00uH | 0.0032Ω | 41000mA | ||
| FAMPI1040-1R5M38R0 | 1.50uH | 0.0042Ω | 38000mA | ||
| FAMPI1040-2R2M27R0 | 2.20uH | 0.0070Ω | 27000mA | ||
| FAMPI1040-3R3M25R5 | 3.30uH | 0.0118Ω | 25500mA | ||
| FAMPI1040-4R7M19R0 | 4.70uH | 0.0186Ω | 19000mA | ||
| FAMPI1040-5R6M18R0 | 5.60uH | 0.0193Ω | 18000mA | ||
| FAMPI1040-R15M100R0 | 0.15uH | 0.00065Ω | 100000mA | ||
| FAMPI1040-R22M90R0 | 0.22uH | 0.00095Ω | 90000mA | ||
| FAMPI1040-R36M70R0 | 0.36uH | 0.00125Ω | 70000mA | ||
| FAMPI1040-R56M45R0 | 0.56uH | 0.0018Ω | 45000mA | ||
| FAMPI1040-R68M43R0 | 0.68uH | 0.0021Ω | 43000mA | ||
| FAMPI1260 | 1.00-220uH | 0.0024-0.55Ω | 3000-45000mA | - | - |
| FAMPI1260-1R0M45R0 | 1.00uH | 0.0024Ω | 45000mA | ||
| FAMPI1260-1R2M44R0 | 1.20uH | 0.0045Ω | 44000mA | ||
| FAMPI1260-1R5M43R0 | 1.50uH | 0.0032Ω | 43000mA | ||
| FAMPI1260-2R2M34R0 | 2.20uH | 0.0047Ω | 34000mA | ||
| FAMPI1260-3R3M28R0 | 3.30uH | 0.0071Ω | 28000mA | ||
| FAMPI1260-4R7M25R0 | 4.70uH | 0.0115Ω | 25000mA | ||
| FAMPI1260-5R6M22R0 | 5.60uH | 0.0126Ω | 22000mA | ||
| FAMPI1260-6R8M19R0 | 6.80uH | 0.0138Ω | 19000mA | ||
| FAMPI1260-8R2M17R0 | 8.20uH | 0.0160Ω | 17000mA | ||
| FAMPI1260-100M15R5 | 10.00uH | 0.0207Ω | 15500mA | ||
| FAMPI1260-101M5R0 | 100.00uH | 0.2000Ω | 5000mA | ||
| FAMPI1260-120M13R5 | 12.00uH | 0.0230Ω | 13500mA | ||
| FAMPI1260-121M4R5 | 120.00uH | 0.2350Ω | 4500mA | ||
| FAMPI1260-150M13R0 | 15.00uH | 0.0290Ω | 13000mA | ||
| FAMPI1260-151M4R0 | 150.00uH | 0.3500Ω | 4000mA | ||
| FAMPI1260-180M12R0 | 18.00uH | 0.0350Ω | 12000mA | ||
| FAMPI1260-220M11R0 | 22.00uH | 0.0395Ω | 11000mA | ||
| FAMPI1260-221M3R0 | 220.00uH | 0.5500Ω | 3000mA | ||
| FAMPI1260-270M9R0 | 27.00uH | 0.0560Ω | 9000mA | ||
| FAMPI1260-330M8R0 | 33.00uH | 0.0750Ω | 8000mA | ||
| FAMPI1260-470M7R0 | 47.00uH | 0.0900Ω | 7000mA | ||
| FAMPI1260-560M6R5 | 56.00H | 0.1180Ω | 6500mA | ||
| FAMPI1260-680M6R0 | 68.00uH | 0.1400Ω | 6000mA | ||
| FAMPI1260-820M5R5 | 82.00uH | 0.1610Ω | 5500mA | ||
| FAMPI1265 | 0.15-47.0uH | 0.0003-0.090Ω | 9500-118000mA | - | - |
| FAMPI1265-1R0M48R0 | 1.00uH | 0.0023Ω | 48000mA | ||
| FAMPI1265-1R5M45R0 | 1.50uH | 0.0030Ω | 45000mA | ||
| FAMPI1265-2R2M37R0 | 2.20uH | 0.0042Ω | 37000mA | ||
| FAMPI1265-3R3M30R0 | 3.30uH | 0.0068Ω | 30000mA | ||
| FAMPI1265-4R7M28R0 | 4.70uH | 0.0084Ω | 28000mA | ||
| FAMPI1265-5R6M23R0 | 5.60uH | 0.0100Ω | 23000mA | ||
| FAMPI1265-6R8M18R0 | 6.80uH | 0.0115Ω | 18000mA | ||
| FAMPI1265-8R2M16R0 | 8.20uH | 0.0155Ω | 16000mA | ||
| FAMPI1265-130M13R0 | 13.00uH | 0.0240Ω | 13000mA | ||
| FAMPI1265-150M12R5 | 15.00uH | 0.0280Ω | 12500mA | ||
| FAMPI1265-220M12R0 | 22.00uH | 0.0370Ω | 12000mA | ||
| FAMPI1265-470M9R5 | 47.00uH | 0.0900Ω | 9500mA | ||
| FAMPI1265-R15M118R0 | 0.15uH | 0.0006Ω | 118000mA | ||
| FAMPI1265-R22M112R0 | 0.22uH | 0.0006Ω | 112000mA | ||
| FAMPI1265-R30M72R0 | 0.30uH | 0.0007Ω | 72000mA | ||
| FAMPI1265-R33M68R0 | 0.33uH | 0.0008Ω | 68000mA | ||
| FAMPI1265-R36M66R0 | 0.36uH | 0.0009Ω | 66000mA | ||
| FAMPI1265-R40M64R0 | 0.40uH | 0.0010Ω | 64000mA | ||
| FAMPI1265-R47M63R0 | 0.47uH | 0.0012Ω | 63000mA | ||
| FAMPI1265-R50M60R0 | 0.50uH | 0.0003Ω | 60000mA | ||
| FAMPI1265-R56M58R0 | 0.56uH | 0.0014Ω | 58000mA | ||
| FAMPI1265-R68M55R0 | 0.68uH | 0.0015Ω | 55000mA | ||
| FAMPI1265-R82M50R0 | 0.82uH | 0.0019Ω | 50000mA | ||
| FAMPI1770 | 1-100uH | 0.0014-0.1100Ω | 4200-73000mA | - | - |
| FAMPI1770-1R0M-T01 | 1.00uH | 0.0014Ω | 73000mA | ||
| FAMPI1770-1R0M-T02 | 1.00uH | 0.0013Ω | 32000mA | ||
| FAMPI1770-1R5M-T01 | 1.50uH | 0.0019Ω | 65000mA | ||
| FAMPI1770-1R5M-T02 | 1.50uH | 0.0016Ω | 31000mA | ||
| FAMPI1770-1R8M-T01 | 1.80uH | 0.0021Ω | 65000mA | ||
| FAMPI1770-2R2M-T01 | 2.20uH | 0.0025Ω | 62000mA | ||
| FAMPI1770-2R2M-T02 | 2.20uH | 0.0020Ω | 28000mA | ||
| FAMPI1770-3R3M-T01 | 3.30uH | 0.0039Ω | 54000mA | ||
| FAMPI1770-3R3M-T02 | 3.30uH | 0.0029Ω | 27000mA | ||
| FAMPI1770-4R7M-T01 | 4.70uH | 0.0051Ω | 41000mA | ||
| FAMPI1770-4R7M-T02 | 4.70uH | 0.0076Ω | 21000mA | ||
| FAMPI1770-5R6M-T01 | 5.60uH | 0.0071Ω | 40000mA | ||
| FAMPI1770-5R6M-T02 | 5.60uH | 0.0046Ω | 21000mA | ||
| FAMPI1770-6R8M-T01 | 6.80uH | 0.0088Ω | 32000mA | ||
| FAMPI1770-6R8M-T02 | 6.80uH | 0.0052Ω | 18500mA | ||
| FAMPI1770-8R2M-T01 | 8.20uH | 0.0107Ω | 25000mA | ||
| FAMPI1770-8R2M-T02 | 8.20uH | 0.0081Ω | 18000mA | ||
| FAMPI1770-100M-T01 | 10.00uH | 0.0120Ω | 25000mA | ||
| FAMPI1770-100M-T02 | 10.00uH | 0.0138Ω | 17000mA | ||
| FAMPI1770-101M-T02 | 100.00uH | 0.1100Ω | 4000mA | ||
| FAMPI1770-101M-T03 | 100.00uH | 0.1400Ω | 7000mA | ||
| FAMPI1770-150M-T01 | 15.00uH | 0.0199Ω | 25000mA | ||
| FAMPI1770-150M-T02 | 15.00uH | 0.0144Ω | 12000mA | ||
| FAMPI1770-220M-T01 | 22.00uH | 0.0265Ω | 23000mA | ||
| FAMPI1770-220M-T02 | 22.00uH | 0.0210Ω | 9500mA | ||
| FAMPI1770-330M-T02 | 33.00uH | 0.0370Ω | 9000mA | ||
| FAMPI1770-330M-T03 | 33.00uH | 0.0380Ω | 13000mA | ||
| FAMPI1770-470M-T02 | 47.00uH | 0.0427Ω | 8600mA | ||
| FAMPI1770-470M-T03 | 47.00uH | 0.0580Ω | 11000mA | ||
| FAMPI1770-560M-T02 | 56.00uH | 0.0578Ω | 4200mA | ||
| FAMPI1770-680M-T02 | 68.00uH | 0.0757Ω | 4500mA | ||
| FAMPI1770-680M-T03 | 68.00uH | 0.1000Ω | 9000mA | ||
| FAMPI1770-820M-T02 | 82.00uH | 0.0917Ω | 4500mA | ||
| FAMPI1770-820M-T03 | 82.00uH | 0.1100Ω | 8000mA | ||
| FASDR0301 | 2.20-330uH | 0.1300-16.0000Ω | 900-790mA | - | - |
| FASDR0301-2R2M0R79 | 2.20uH | 0.1300Ω | 790mA | ||
| FASDR0301-3R3M0R75 | 3.30uH | 0.1500Ω | 750mA | ||
| FASDR0301-4R7M0R65 | 4.70uH | 0.1800Ω | 650mA | ||
| FASDR0301-100M0R45 | 10.00uH | 0.3900Ω | 450mA | ||
| FASDR0301-101M0R15 | 100.00uH | 2.8700Ω | 150mA | ||
| FASDR0301-150M0R3 | 15.00uH | 0.7500Ω | 300mA | ||
| FASDR0301-220M0R25 | 22.00uH | 0.9200Ω | 250mA | ||
| FASDR0301-221M0R13 | 220.00uH | 10.0000Ω | 130mA | ||
| FASDR0301-330M0R20 | 33.00uH | 1.4300Ω | 200mA | ||
| FASDR0301-331M0R09 | 330.00uH | 16.0000Ω | 90mA | ||
| FASDR0301-470M0R17 | 47.00uH | 1.6900Ω | 170mA | ||
| FASDR0301-680M0R16 | 68.00uH | 2.7000Ω | 160mA | ||
| FASDR0302 | 1.00-680uH | 0.0350-20.5000Ω | 40-3200mA | - | - |
| FASDR0302-1R0M3R2 | 1.00uH | 0.0350Ω | 3200mA | ||
| FASDR0302-1R5M2R6 | 1.50uH | 0.0750Ω | 2600mA | ||
| FASDR0302-2R2M2R35 | 2.20uH | 0.1300Ω | 2350mA | ||
| FASDR0302-2R7M1R9 | 2.70uH | 0.1400Ω | 1900mA | ||
| FASDR0302-3R3M1R8 | 3.30uH | 0.1700Ω | 1800mA | ||
| FASDR0302-4R7M1R4 | 4.70uH | 0.2100Ω | 1400mA | ||
| FASDR0302-5R6M1R2 | 5.60uH | 0.2200Ω | 1200mA | ||
| FASDR0302-6R8M1R15 | 6.80uH | 0.2500Ω | 1150mA | ||
| FASDR0302-100M1R1 | 10.00uH | 0.3200Ω | 1100mA | ||
| FASDR0302-101K0R25 | 100.00uH | 2.800Ω | 250mA | ||
| FASDR0302-120M0R85 | 12.00uH | 0.3500Ω | 850mA | ||
| FASDR0302-150M0R8 | 15.00uH | 0.4200Ω | 800mA | ||
| FASDR0302-151K0R2 | 150.00uH | 4.2000Ω | 200mA | ||
| FASDR0302-220M0R65 | 22.00uH | 0.5800Ω | 650mA | ||
| FASDR0302-221K0R16 | 220.00uH | 6.0000Ω | 160mA | ||
| FASDR0302-270M0R5 | 27.00uH | 0.6500Ω | 500mA | ||
| FASDR0302-330K0R45 | 33.00uH | 0.8000Ω | 450mA | ||
| FASDR0302-331K0R12 | 330.00uH | 9.5000Ω | 120mA | ||
| FASDR0302-391K0R11 | 390.00uH | 10.5000Ω | 110mA | ||
| FASDR0302-470K0R4 | 47.00uH | 1.2000Ω | 400mA | ||
| FASDR0302-471K0R95 | 470.00uH | 11.5000Ω | 95mA | ||
| FASDR0302-560K0R31 | 56.00uH | 1.6500Ω | 310mA | ||
| FASDR0302-680K0R29 | 68.00uH | 1.8000Ω | 290mA | ||
| FASDR0302-681K0R04 | 680.00uH | 20.5000Ω | 40mA | ||
| FASDR0403 | 1.00-2200.00uH | 0.0300-30.0000Ω | 20-3800mA | - | - |
| FASDR0403-1R0M3R8 | 1.00uH | 0.0300Ω | 3800mA | ||
| FASDR0403-1R5M3R5 | 1.50uH | 0.0360Ω | 3500mA | ||
| FASDR0403-2R2M2R9 | 2.20uH | 0.0470Ω | 2900mA | ||
| FASDR0403-2R7M2R5 | 2.70uH | 0.0520Ω | 2500mA | ||
| FASDR0403-3R3M2R4 | 3.30uH | 0.0580Ω | 2400mA | ||
| FASDR0403-3R9M1R98 | 3.90uH | 0.0760Ω | 1980mA | ||
| FASDR0403-4R7M1R9 | 4.70uH | 0.0940Ω | 1900mA | ||
| FASDR0403-5R6M1R8 | 5.60uH | 0.1000Ω | 1800mA | ||
| FASDR0403-6R8M1R6 | 6.80uH | 0.1200Ω | 1600mA | ||
| FASDR0403-8R2M1R26 | 8.20uH | 0.1600Ω | 1260mA | ||
| FASDR0403-100M1R15 | 10.00uH | 0.1800Ω | 1150mA | ||
| FASDR0403-101K0R4 | 100.00uH | 1.5200Ω | 400mA | ||
| FASDR0403-102K0R13 | 1000.00uH | 15.6000Ω | 130mA | ||
| FASDR0403-120M1R05 | 12.00uH | 0.2100Ω | 1050mA | ||
| FASDR0403-150M0R92 | 15.00uH | 0.2400Ω | 920mA | ||
| FASDR0403-151K0R38 | 150.00uH | 2.0000Ω | 380mA | ||
| FASDR0403-180M0R84 | 18.00uH | 0.3400Ω | 840mA | ||
| FASDR0403-220M0R76 | 22.00uH | 0.3800Ω | 760mA | ||
| FASDR0403-221K0R32 | 220.00uH | 3.4000Ω | 320mA | ||
| FASDR0403-222M0R02 | 2200.00uH | 30.0000Ω | 20mA | ||
| FASDR0403-270M0R71 | 27.00uH | 0.4100Ω | 710mA | ||
| FASDR0403-330K0R7 | 33.00uH | 0.5100Ω | 700mA | ||
| FASDR0403-331K0R28 | 330.00uH | 5.3000Ω | 280mA | ||
| FASDR0403-390K0R66 | 39.00uH | 0.5600Ω | 660mA | ||
| FASDR0403-470K0R65 | 47.00uH | 0.8000Ω | 650mA | ||
| FASDR0403-471K0R2 | 470.00uH | 6.8000Ω | 200mA | ||
| FASDR0403-560K0R5 | 56.00uH | 0.9400Ω | 500mA | ||
| FASDR0403-680K0R48 | 68.00uH | 1.1200Ω | 480mA | ||
| FASDR0403-681K0R16 | 680.00uH | 10.0000Ω | 160mA | ||
| FASDR0403-820K0R45 | 82.00uH | 1.3500Ω | 450mA | ||
| FASDR0502 | 1-1000uH | 0.021-15.0000Ω | 140-4000mA | - | - |
| FASDR0502-1R0M4R0 | 1.00uH | 0.0210Ω | 4000mA | ||
| FASDR0502-1R5M4R0 | 1.50uH | 0.0600Ω | 4000mA | ||
| FASDR0502-1R8M3R7 | 1.80uH | 0.0650Ω | 3700mA | ||
| FASDR0502-2R2M3R5 | 2.20uH | 0.0700Ω | 3500mA | ||
| FASDR0502-2R7M3R2 | 2.70uH | 0.0800Ω | 3200mA | ||
| FASDR0502-3R3M2R7 | 3.30uH | 0.1000Ω | 2700mA | ||
| FASDR0502-3R9M2R4 | 3.90uH | 0.1200Ω | 2400mA | ||
| FASDR0502-4R7M2R0 | 4.70uH | 0.1400Ω | 2000mA | ||
| FASDR0502-5R6M1R8 | 5.60uH | 0.1500Ω | 1800mA | ||
| FASDR0502-6R8M1R5 | 6.80uH | 0.1600Ω | 1500mA | ||
| FASDR0502-8R2M1R4 | 8.20uH | 0.1700Ω | 1400mA | ||
| FASDR0502-100M1R3 | 10.00uH | 0.2000Ω | 1300mA | ||
| FASDR0502-101K0R4 | 100.00uH | 1.4000Ω | 400mA | ||
| FASDR0502-102K0R14 | 1000.00uH | 15.0000Ω | 140mA | ||
| FASDR0502-120M1R1 | 12.00uH | 0.2500Ω | 1100mA | ||
| FASDR0502-121K0R35 | 120.00uH | 1.7500Ω | 350mA | ||
| FASDR0502-150M1R05 | 15.00uH | 0.2500Ω | 1050mA | ||
| FASDR0502-151K0R25 | 150.00uH | 2.0000Ω | 250mA | ||
| FASDR0502-180M1R0 | 18.00uH | 0.3000Ω | 1000mA | ||
| FASDR0502-181K0R25 | 180.00uH | 2.6000Ω | 250mA | ||
| FASDR0502-220M0R9 | 22.00uH | 0.3500Ω | 900mA | ||
| FASDR0502-221K0R2 | 220.00uH | 3.00Ω | 200mA | ||
| FASDR0502-270M0R85 | 27.00uH | 0.4000Ω | 850mA | ||
| FASDR0502-271K0R18 | 270.00uH | 3.7000Ω | 180mA | ||
| FASDR0502-330K0R75 | 33.00uH | 0.5000Ω | 750mA | ||
| FASDR0502-331K0R17 | 330.00uH | 4.3000Ω | 170mA | ||
| FASDR0502-390K0R7 | 39.00uH | 0.5500Ω | 700mA | ||
| FASDR0502-391K0R16 | 390.00uH | 6.0000Ω | 160mA | ||
| FASDR0502-470K0R6 | 47.00uH | 0.6500Ω | 600mA | ||
| FASDR0502-471K0R15 | 470.00uH | 6.7000Ω | 150mA | ||
| FASDR0502-560K0R55 | 56.00uH | 0.7600Ω | 550mA | ||
| FASDR0502-680K0R5 | 68.00uH | 0.9500Ω | 500mA | ||
| FASDR0502-820K0R45 | 82.00uH | 1.2000Ω | 450mA | ||
| FASDR0503 | 1-1000uH | 0.03-9.87Ω | 100-4500mA | - | - |
| FASDR0503-1R0M4R5 | 1.00uH | 0.0300Ω | 4500mA | ||
| FASDR0503-1R5M4R2 | 1.50uH | 0.0400Ω | 4200mA | ||
| FASDR0503-1R8M3R49 | 1.80uH | 0.0500Ω | 3490mA | ||
| FASDR0503-2R2M3R12 | 2.20uH | 0.0600Ω | 3120mA | ||
| FASDR0503-2R7M2R67 | 2.70uH | 0.0700Ω | 2670mA | ||
| FASDR0503-3R3M2R51 | 3.30uH | 0.0800Ω | 2510mA | ||
| FASDR0503-3R9M2R35 | 3.90uH | 0.0900Ω | 2350mA | ||
| FASDR0503-4R7M2R14 | 4.70uH | 0.1400Ω | 2140mA | ||
| FASDR0503-5R6M1R93 | 5.60uH | 0.1500Ω | 1930mA | ||
| FASDR0503-6R8M1R82 | 6.80uH | 0.1600Ω | 1820mA | ||
| FASDR0503-8R2M1R51 | 8.20uH | 0.1700Ω | 1510mA | ||
| FASDR0503-100M1R3 | 10.00uH | 0.1800Ω | 1300mA | ||
| FASDR0503-101K0R47 | 100.00uH | 1.3000Ω | 470mA | ||
| FASDR0503-102K0R1 | 1000.00uH | 9.8700Ω | 100mA | ||
| FASDR0503-120M1R27 | 12.00uH | 0.2000Ω | 1270mA | ||
| FASDR0503-121K0R42 | 120.00uH | 1.3800Ω | 420mA | ||
| FASDR0503-150M1R23 | 15.00uH | 0.2200Ω | 1230mA | ||
| FASDR0503-151K0R35 | 150.00uH | 1.8100Ω | 350mA | ||
| FASDR0503-180M1R17 | 18.00uH | 0.2500Ω | 1170mA | ||
| FASDR0503-181K0R3 | 180.00uH | 1.9500Ω | 300mA | ||
| FASDR0503-220M1R06 | 22.00uH | 0.3500Ω | 1060mA | ||
| FASDR0503-221K0R28 | 220.00uH | 2.1000Ω | 280mA | ||
| FASDR0503-270M0R85 | 27.00uH | 0.4500Ω | 850mA | ||
| FASDR0503-271K0R23 | 270.00uH | 2.4200Ω | 230mA | ||
| FASDR0503-330K0R8 | 33.00uH | 0.5500Ω | 800mA | ||
| FASDR0503-331K0R19 | 330.00uH | 3.8200Ω | 190mA | ||
| FASDR0503-390K0R78 | 39.00uH | 0.7000Ω | 780mA | ||
| FASDR0503-391K0R16 | 390.00uH | 4.6800Ω | 160mA | ||
| FASDR0503-470K0R75 | 47.00uH | 0.7200Ω | 750mA | ||
| FASDR0503-471K0R15 | 470.00uH | 5.1000Ω | 150mA | ||
| FASDR0503-560K0R56 | 56.00uH | 0.8400Ω | 560mA | ||
| FASDR0503-561K0R14 | 560.00uH | 6.0000Ω | 140mA | ||
| FASDR0503-680K0R52 | 68.00uH | 0.9000Ω | 520mA | ||
| FASDR0503-681K0R13 | 680.00uH | 7.6000Ω | 130mA | ||
| FASDR0503-820K0R5 | 82.00uH | 0.9500Ω | 500mA | ||
| FASDR0503-821K0R11 | 820.00uH | 9.1200Ω | 110mA | ||
| FASDR0504 | 1-2200uH | 0.028-15Ω | 100-4700mA | - | - |
| FASDR0504-1R0M4R7 | 1.00uH | 0.0250Ω | 4700mA | ||
| FASDR0504-1R4M4R4 | 1.40uH | 0.0300Ω | 4400mA | ||
| FASDR0504-1R8M4R0 | 1.80uH | 0.0350Ω | 4000mA | ||
| FASDR0504-2R2M3R2 | 2.20uH | 0.0400Ω | 3200mA | ||
| FASDR0504-2R7M3R0 | 2.70uH | 0.0450Ω | 3000mA | ||
| FASDR0504-3R3M2R8 | 3.30uH | 0.0480Ω | 2800mA | ||
| FASDR0504-3R9M2R5 | 3.90uH | 0.0550Ω | 2500mA | ||
| FASDR0504-4R7M2R4 | 4.70uH | 0.0600Ω | 2400mA | ||
| FASDR0504-6R8M2R3 | 6.80uH | 0.0650Ω | 2300mA | ||
| FASDR0504-100M1R44 | 10.00uH | 0.0850Ω | 1440mA | ||
| FASDR0504-101K0R52 | 100.00uH | 0.7000Ω | 520mA | ||
| FASDR0504-102K0R15 | 1000.00uH | 7.0000Ω | 150mA | ||
| FASDR0504-120M1R4 | 120.00uH | 0.1000Ω | 1400mA | ||
| FASDR0504-121K0R48 | 120.00uH | 0.7700Ω | 480mA | ||
| FASDR0504-150M1R3 | 15.00uH | 0.1200Ω | 1300mA | ||
| FASDR0504-151K0R46 | 150.00uH | 1.2000Ω | 460mA | ||
| FASDR0504-152K0R12 | 1500.00uH | 10.0000Ω | 120mA | ||
| FASDR0504-180M1R23 | 18.00uH | 0.1500Ω | 1230mA | ||
| FASDR0504-182K0R11 | 1800.00uH | 12.0000Ω | 110mA | ||
| FASDR0504-220M1R11 | 22.00uH | 0.17000Ω | 1110mA | ||
| FASDR0504-221K0R42 | 220.00uH | 1.5700Ω | 420mA | ||
| FASDR0504-222K0R1 | 2200.00uH | 15.0000Ω | 100mA | ||
| FASDR0504-270M0R97 | 27.00uH | 0.2000Ω | 970mA | ||
| FASDR0504-330K0R88 | 33.00uH | 0.2300Ω | 880mA | ||
| FASDR0504-331K0R38 | 330.00uH | 1.8000Ω | 380mA | ||
| FASDR0504-470K0R72 | 47.00uH | 0.3500Ω | 720mA | ||
| FASDR0504-471K0R25 | 470.00uH | 3.0000Ω | 250mA | ||
| FASDR0504-561K0R22 | 560.00uH | 3.5000Ω | 220mA | ||
| FASDR0504-680K0R61 | 68.00uH | 0.4600Ω | 610mA | ||
| FASDR0504-681K0R3 | 680.00uH | 4.8000Ω | 300mA | ||
| FASDR0504-681K0R19 | 680.00uH | 5.1000Ω | 190mA | ||
| FASDR0504-820K0R58 | 82.00uH | 0.6000Ω | 580mA | ||
| FASDR0504-821K0R18 | 820.00uH | 5.5000Ω | 180mA | ||
| FASDR0703 | 1.00-1000uH | 0.0180-4.7600Ω | 210-1640mA | - | - |
| FASDR0703-1R0M1R64 | 1.00uH | 0.0180Ω | 1640mA | ||
| FASDR0703-1R5M1R6 | 1.50uH | 0.0200Ω | 1600mA | ||
| FASDR0703-2R2M1R6 | 2.20uH | 0.0230Ω | 1600mA | ||
| FASDR0703-3R3M1R59 | 3.30uH | 0.0250Ω | 1590mA | ||
| FASDR0703-4R7M1R54 | 4.70uH | 0.0390Ω | 1540mA | ||
| FASDR0703-6R8M1R49 | 6.80uH | 0.0400Ω | 1490mA | ||
| FASDR0703-8R2M1R46 | 8.20uH | 0.0800Ω | 1460mA | ||
| FASDR0703-100M1R44 | 10.00uH | 0.0800Ω | 1440mA | ||
| FASDR0703-101K0R51 | 100.00uH | 0.4800Ω | 510mA | ||
| FASDR0703-102K0R2 | 1000.00uH | 4.7600Ω | 200mA | ||
| FASDR0703-120M1R39 | 12.00uH | 0.0900Ω | 1390mA | ||
| FASDR0703-121K0R49 | 120.00uH | 0.5400Ω | 490mA | ||
| FASDR0703-150M1R24 | 15.00uH | 0.1100Ω | 1240mA | ||
| FASDR0703-151K0R4 | 150.00uH | 0.7600Ω | 400mA | ||
| FASDR0703-180M1R12 | 18.00uH | 0.1100Ω | 1120mA | ||
| FASDR0703-181K0R36 | 180.00uH | 1.0200Ω | 360mA | ||
| FASDR0703-220M1R07 | 22.00uH | 0.1300Ω | 1070mA | ||
| FASDR0703-221K0R31 | 220.00uH | 1.2000Ω | 310mA | ||
| FASDR0703-270M0R94 | 27.00uH | 0.1500Ω | 940mA | ||
| FASDR0703-271K0R29 | 270.00uH | 1.3100Ω | 290mA | ||
| FASDR0703-330K0R85 | 33.00uH | 0.1700Ω | 850mA | ||
| FASDR0703-331K0R28 | 330.00uH | 1.5000Ω | 280mA | ||
| FASDR0703-390K0R74 | 39.00uH | 0.2200Ω | 740mA | ||
| FASDR0703-391K0R27 | 390.00uH | 1.7000Ω | 270mA | ||
| FASDR0703-470K0R68 | 47.00uH | 0.2500Ω | 680mA | ||
| FASDR0703-471K0R26 | 470.00uH | 2.1000Ω | 260mA | ||
| FASDR0703-560K0R64 | 56.00uH | 0.2800Ω | 640mA | ||
| FASDR0703-561K0R25 | 560.00uH | 2.6600Ω | 250mA | ||
| FASDR0703-680K0R59 | 68.00uH | 0.3300Ω | 590mA | ||
| FASDR0703-681K0R23 | 680.00uH | 3.0000Ω | 230mA | ||
| FASDR0703-820K0R54 | 82.00uH | 0.4100Ω | 540mA | ||
| FASDR0703-821K0R21 | 820.00uH | 3.6300Ω | 210mA | ||
| FASDR0705 | 1.00-2200uH | 0.0100-11.0000Ω | 110-5500mA | - | - |
| FASDR0705-1R0M5R5 | 1.00uH | 0.0150Ω | 5500mA | ||
| FASDR0705-1R5M5R0 | 1.50uH | 0.0180Ω | 5000mA | ||
| FASDR0705-2R2M4R5 | 2.20uH | 0.0220Ω | 4500mA | ||
| FASDR0705-3R3M4R0 | 3.30uH | 0.0300Ω | 4000mA | ||
| FASDR0705-4R7M3R6 | 4.70uH | 0.0350Ω | 3600mA | ||
| FASDR0705-5R6M3R3 | 5.60uH | 0.0380Ω | 3300mA | ||
| FASDR0705-6R8M3R1 | 6.80uH | 0.0400Ω | 3100mA | ||
| FASDR0705-8R2M2R7 | 8.20uH | 0.0500Ω | 2700mA | ||
| FASDR0705-100M2R3 | 10.00uH | 0.0700Ω | 2300mA | ||
| FASDR0705-101K | 100.00uH | 0.4300Ω | 720mA | ||
| FASDR0705-102K0R2 | 1000.00uH | 3.5000Ω | 200mA | ||
| FASDR0705-120M2R0 | 12.00uH | 0.0800Ω | 2000mA | ||
| FASDR0705-121K0R66 | 120.00uH | 0.4700Ω | 660mA | ||
| FASDR0705-150M1R8 | 15.00uH | 0.0900Ω | 1800mA | ||
| FASDR0705-151K0R58 | 150.00uH | 0.6400Ω | 580mA | ||
| FASDR0705-152K0R23 | 1.50uH | 7.5000Ω | 230mA | ||
| FASDR0705-180M1R6 | 18.00uH | 0.1000Ω | 1600mA | ||
| FASDR0705-181K0R51 | 180.00uH | 0.7100Ω | 510mA | ||
| FASDR0705-220M1R5 | 22.00uH | 0.1100Ω | 1500mA | ||
| FASDR0705-221K | 220.00uH | 0.9600Ω | 490mA | ||
| FASDR0705-222K0R15 | 2200.00uH | 11.0000Ω | 150mA | ||
| FASDR0705-270M1R3 | 27.00uH | 0.1200Ω | 1300mA | ||
| FASDR0705-271K0R45 | 270.00uH | 1.1000Ω | 450mA | ||
| FASDR0705-330K1R2 | 33.00uH | 0.1300Ω | 1200mA | ||
| FASDR0705-331K0R4 | 330.00uH |
