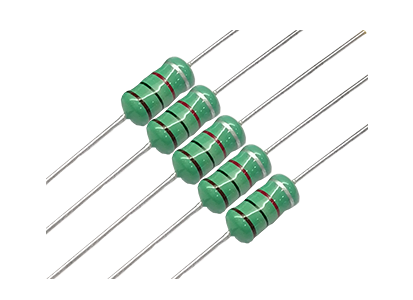

Axial Inductor
Axial Inductor Filter Models: 7 in total, please see the table below.
Series | Inductance | Q(min) | DCR | Load current | S.R.F(MHz) | Test frequency (MHz) | Spec. | Sample Application |
FALGA0204 | 0.33-470uH | 35-40 | 0.48-38Ω | 24-370mA | 3.5-150MHz | 0.796-25.2MHz | - | |
FALGA0204-R33M | 0.33uH | 35 | 0.48Ω | 370mA | 150MHz | 25.2MHz | ||
FALGA0204-R39M | 0.39uH | 35 | 0.51Ω | 350mA | 150MHz | 25.2MHz | ||
FALGA0204-R47M | 0.47uH | 35 | 0.56Ω | 330mA | 150MHz | 25.2MHz | ||
FALGA0204-R56M | 0.56uH | 35 | 0.61Ω | 320mA | 150MHz | 25.2MHz | ||
FALGA0204-R68M | 0.68uH | 35 | 0.67Ω | 310mA | 150MHz | 25.2MHz | ||
FALGA0204-R82M | 0.82uH | 35 | 0.74Ω | 290mA | 150MHz | 25.2MHz | ||
FALGA0204-1R0M | 1uH | 35 | 0.8Ω | 270mA | 150MHz | 25.2MHz | ||
FALGA0204-1R2M | 1.2uH | 40 | 0.9Ω | 260mA | 110MHz | 7.96MHz | ||
FALGA0204-1R5M | 1.5uH | 40 | 1Ω | 250mA | 80MHz | 7.96MHz | ||
FALGA0204-1R8M | 1.8uH | 40 | 1.1Ω | 240mA | 60MHz | 7.96MHz | ||
FALGA0204-2R2M | 2.2uH | 40 | 1.2Ω | 230mA | 45MHz | 7.96MHz | ||
FALGA0204-2R7M | 2.7uH | 40 | 1.3Ω | 220mA | 40MHz | 7.96MHz | ||
FALGA0204-3R3K | 3.3uH | 40 | 1.4Ω | 210mA | 38MHz | 7.96MHz | ||
FALGA0204-3R9K | 3.9uH | 40 | 1.5Ω | 200mA | 35MHz | 7.96MHz | ||
FALGA0204-4R7K | 4.7uH | 40 | 1.6Ω | 190mA | 32MHz | 7.96MHz | ||
FALGA0204-5R6K | 5.6uH | 40 | 1.7Ω | 180mA | 30MHz | 7.96MHz | ||
FALGA0204-6R8K | 6.8uH | 40 | 1.9Ω | 175mA | 28MHz | 7.96MHz | ||
FALGA0204-8R2K | 8.2uH | 40 | 2Ω | 165mA | 26MHz | 7.96MHz | ||
FALGA0204-100K | 10uH | 40 | 2.2Ω | 160mA | 24MHz | 7.96MHz | ||
FALGA0204-120K | 12uH | 40 | 2.5Ω | 150mA | 22MHz | 2.52MHz | ||
FALGA0204-150K | 15uH | 40 | 2.8Ω | 145mA | 20MHz | 2.52MHz | ||
FALGA0204-180K | 18uH | 40 | 3.1Ω | 140mA | 18MHz | 2.52MHz | ||
FALGA0204-220K | 22uH | 40 | 3.4Ω | 130mA | 17MHz | 2.52MHz | ||
FALGA0204-270K | 27uH | 40 | 4.3Ω | 80mA | 16MHz | 2.52MHz | ||
FALGA0204-330K | 33uH | 40 | 4.7Ω | 76mA | 14MHz | 2.52MHz | ||
FALGA0204-390K | 39uH | 40 | 5.2Ω | 74mA | 13MHz | 2.52MHz | ||
FALGA0204-470K | 47uH | 40 | 5.8Ω | 70mA | 12MHz | 2.52MHz | ||
FALGA0204-560K | 56uH | 40 | 6.4Ω | 68mA | 11MHz | 2.52MHz | ||
FALGA0204-680K | 68uH | 40 | 7.2Ω | 64mA | 10MHz | 2.52MHz | ||
FALGA0204-820K | 82uH | 40 | 11Ω | 46mA | 9.5MHz | 2.52MHz | ||
FALGA0204-101K | 100uH | 40 | 12Ω | 44mA | 9MHz | 2.52MHz | ||
FALGA0204-121K | 120uH | 40 | 13Ω | 42mA | 8MHz | 0.796MHz | ||
FALGA0204-151K | 150uH | 40 | 16Ω | 39mA | 6MHz | 0.796MHz | ||
FALGA0204-181K | 180uH | 40 | 18Ω | 37mA | 5.5MHz | 0.796MHz | ||
FALGA0204-221K | 220uH | 40 | 20Ω | 35mA | 5MHz | 0.796MHz | ||
FALGA0204-271K | 270uH | 40 | 26Ω | 28mA | 4.6MHz | 0.796MHz | ||
FALGA0204-331K | 330uH | 40 | 30Ω | 26mA | 4.2MHz | 0.796MHz | ||
FALGA0204-391K | 390uH | 40 | 34Ω | 25mA | 3.8MHz | 0.796MHz | ||
FALGA0204-471K | 470uH | 40 | 38Ω | 24mA | 3.5MHz | 0.796MHz | ||
FALGA0305 | 0.22-270uH | 35-50 | 0.4-19Ω | 65-400mA | 2.8-150MHz | 0.796-25.2MHz | - | |
FALGA0305-R22M | 0.22uH | 35 | 0.4Ω | 400mA | 150MHz | 25.2MHz | ||
FALGA0305-R27M | 0.27uH | 35 | 0.43Ω | 380mA | 150MHz | 25.2MHz | ||
FALGA0305-R33M | 0.33uH | 35 | 0.48Ω | 370mA | 150MHz | 25.2MHz | ||
FALGA0305-R39M | 0.39uH | 35 | 0.51Ω | 350mA | 150MHz | 25.2MHz | ||
FALGA0305-R47M | 0.47uH | 35 | 0.56Ω | 330mA | 150MHz | 25.2MHz | ||
FALGA0305-R56M | 0.56uH | 40 | 0.61Ω | 320mA | 150MHz | 25.2MHz | ||
FALGA0305-R68M | 0.68uH | 40 | 0.67Ω | 310mA | 150MHz | 25.2MHz | ||
FALGA0305-R82M | 0.82uH | 40 | 0.74Ω | 290mA | 150MHz | 25.2MHz | ||
FALGA0305-1R0M | 1uH | 40 | 0.8Ω | 270mA | 150MHz | 25.2MHz | ||
FALGA0305-1R2M | 1.2uH | 50 | 0.9Ω | 260mA | 144MHz | 7.96MHz | ||
FALGA0305-1R5M | 1.5uH | 50 | 1Ω | 250mA | 131MHz | 7.96MHz | ||
FALGA0305-1R8M | 1.8uH | 50 | 1.1Ω | 240mA | 121MHz | 7.96MHz | ||
FALGA0305-2R2M | 2.2uH | 50 | 1.2Ω | 230mA | 110MHz | 7.96MHz | ||
FALGA0305-2R7M | 2.7uH | 50 | 1.3Ω | 220mA | 100MHz | 7.96MHz | ||
FALGA0305-3R3K | 3.3uH | 50 | 1.4Ω | 210mA | 90MHz | 7.96MHz | ||
FALGA0305-3R9K | 3.9uH | 50 | 1.6Ω | 200mA | 60MHz | 7.96MHz | ||
FALGA0305-4R7K | 4.7uH | 50 | 1.7Ω | 190mA | 50MHz | 7.96MHz | ||
FALGA0305-5R6K | 5.6uH | 50 | 1.9Ω | 180mA | 42MHz | 7.96MHz | ||
FALGA0305-6R8K | 6.8uH | 50 | 2Ω | 175mA | 34MHz | 7.96MHz | ||
FALGA0305-8R2K | 8.2uH | 50 | 2.2Ω | 165mA | 25MHz | 7.96MHz | ||
FALGA0305-100K | 10uH | 50 | 2.5Ω | 160mA | 21MHz | 7.96MHz | ||
FALGA0305-120K | 12uH | 50 | 2.5Ω | 150mA | 19MHz | 2.52MHz | ||
FALGA0305-150K | 15uH | 50 | 2.8Ω | 145mA | 17MHz | 2.52MHz | ||
FALGA0305-180K | 18uH | 50 | 3.1Ω | 140mA | 13MHz | 2.52MHz | ||
FALGA0305-220K | 22uH | 50 | 3.4Ω | 130mA | 9.6MHz | 2.52MHz | ||
FALGA0305-270K | 27uH | 50 | 3.8Ω | 125mA | 7.2MHz | 2.52MHz | ||
FALGA0305-330K | 33uH | 50 | 4.1Ω | 120mA | 6.3MHz | 2.52MHz | ||
FALGA0305-390K | 39uH | 50 | 4.5Ω | 115mA | 6.3MHz | 2.52MHz | ||
FALGA0305-470K | 47uH | 50 | 4.9Ω | 110mA | 6.3MHz | 2.52MHz | ||
FALGA0305-560K | 56uH | 50 | 5.3Ω | 105mA | 6.2MHz | 2.52MHz | ||
FALGA0305-680K | 68uH | 50 | 5.8Ω | 100mA | 5.7MHz | 2.52MHz | ||
FALGA0305-820K | 82uH | 50 | 6.3Ω | 95mA | 5.3MHz | 2.52MHz | ||
FALGA0305-101K | 100uH | 50 | 7Ω | 90mA | 4.8MHz | 2.52MHz | ||
FALGA0305-121K | 120uH | 50 | 13Ω | 90mA | 3.8MHz | 0.796MHz | ||
FALGA0305-151K | 150uH | 50 | 15Ω | 85mA | 3.5MHz | 0.796MHz | ||
FALGA0305-181K | 180uH | 50 | 16Ω | 80mA | 3.3MHz | 0.796MHz | ||
FALGA0305-221K | 220uH | 50 | 17Ω | 75mA | 3MHz | 0.796MHz | ||
FALGA0305-271K | 270uH | 50 | 19Ω | 65mA | 2.8MHz | 0.796MHz | ||
FALGA0307 | 0.22-1000uH | 35-50 | 0.4-33Ω | 40-400mA | 1.4-150MHz | 0.796-25.2MHz | - | |
FALGA0307-R22M | 0.22uH | 35 | 0.4Ω | 400mA | 150MHz | 25.2MHz | ||
FALGA0307-R27M | 0.27uH | 35 | 0.43Ω | 380mA | 150MHz | 25.2MHz | ||
FALGA0307-R33M | 0.33uH | 35 | 0.48Ω | 370mA | 150MHz | 25.2MHz | ||
FALGA0307-R39M | 0.39uH | 35 | 0.51Ω | 350mA | 150MHz | 25.2MHz | ||
FALGA0307-R47M | 0.47uH | 35 | 0.56Ω | 330mA | 150MHz | 25.2MHz | ||
FALGA0307-R56M | 0.56uH | 40 | 0.61Ω | 320mA | 150MHz | 25.2MHz | ||
FALGA0307-R68M | 0.68uH | 40 | 0.67Ω | 310mA | 150MHz | 25.2MHz | ||
FALGA0307-R82M | 0.82uH | 40 | 0.74Ω | 290mA | 150MHz | 25.2MHz | ||
FALGA0307-1R0M | 1uH | 40 | 0.8Ω | 270mA | 150MHz | 25.2MHz | ||
FALGA0307-1R2M | 1.2uH | 50 | 0.9Ω | 260mA | 144MHz | 7.96MHz | ||
FALGA0307-1R5M | 1.5uH | 50 | 1Ω | 250mA | 131MHz | 7.96MHz | ||
FALGA0307-1R8M | 1.8uH | 50 | 1.1Ω | 240mA | 121MHz | 7.96MHz | ||
FALGA0307-2R2M | 2.2uH | 50 | 1.2Ω | 230mA | 110MHz | 7.96MHz | ||
FALGA0307-2R7M | 2.7uH | 50 | 1.3Ω | 220mA | 100MHz | 7.96MHz | ||
FALGA0307-3R3K | 3.3uH | 50 | 1.4Ω | 210mA | 90MHz | 7.96MHz | ||
FALGA0307-3R9K | 3.9uH | 50 | 1.6Ω | 200mA | 60MHz | 7.96MHz | ||
FALGA0307-4R7K | 4.7uH | 50 | 1.7Ω | 190mA | 50MHz | 7.96MHz | ||
FALGA0307-5R6K | 5.6uH | 50 | 1.9Ω | 180mA | 42MHz | 7.96MHz | ||
FALGA0307-6R8K | 6.8uH | 50 | 2Ω | 175mA | 34MHz | 7.96MHz | ||
FALGA0307-8R2K | 8.2uH | 50 | 2.2Ω | 165mA | 25MHz | 7.96MHz | ||
FALGA0307-100K | 10uH | 50 | 2.5Ω | 160mA | 21MHz | 7.96MHz | ||
FALGA0307-120K | 12uH | 50 | 2.5Ω | 150mA | 19MHz | 2.52MHz | ||
FALGA0307-150K | 15uH | 50 | 2.8Ω | 145mA | 17MHz | 2.52MHz | ||
FALGA0307-180K | 18uH | 50 | 3.1Ω | 140mA | 13MHz | 2.52MHz | ||
FALGA0307-220K | 22uH | 50 | 3.4Ω | 130mA | 9.6MHz | 2.52MHz | ||
FALGA0307-270K | 27uH | 50 | 3.8Ω | 125mA | 7.2MHz | 2.52MHz | ||
FALGA0307-330K | 33uH | 50 | 4.1Ω | 120mA | 6.3MHz | 2.52MHz | ||
FALGA0307-390K | 39uH | 50 | 4.5Ω | 115mA | 6.3MHz | 2.52MHz | ||
FALGA0307-470K | 47uH | 50 | 4.9Ω | 110mA | 6.3MHz | 2.52MHz | ||
FALGA0307-560K | 56uH | 50 | 5.3Ω | 105mA | 6.2MHz | 2.52MHz | ||
FALGA0307-680K | 68uH | 50 | 5.8Ω | 100mA | 5.7MHz | 2.52MHz | ||
FALGA0307-820K | 82uH | 50 | 6.3Ω | 95mA | 5.3MHz | 2.52MHz | ||
FALGA0307-101K | 100uH | 50 | 7Ω | 90mA | 4.8MHz | 2.52MHz | ||
FALGA0307-121K | 120uH | 50 | 13Ω | 90mA | 3.8MHz | 0.796MHz | ||
FALGA0307-151K | 150uH | 50 | 15Ω | 85mA | 3.5MHz | 0.796MHz | ||
FALGA0307-181K | 180uH | 50 | 16Ω | 80mA | 3.3MHz | 0.796MHz | ||
FALGA0307-221K | 220uH | 50 | 17Ω | 75mA | 3MHz | 0.796MHz | ||
FALGA0307-271K | 270uH | 50 | 19Ω | 65mA | 2.8MHz | 0.796MHz | ||
FALGA0307-331K | 330uH | 50 | 20Ω | 60mA | 2.6MHz | 0.796MHz | ||
FALGA0307-391K | 390uH | 50 | 22Ω | 55mA | 2.4MHz | 0.796MHz | ||
FALGA0307-471K | 470uH | 50 | 24Ω | 55mA | 2.25MHz | 0.796MHz | ||
FALGA0307-561K | 560uH | 50 | 26Ω | 50mA | 2.1MHz | 0.796MHz | ||
FALGA0307-681K | 680uH | 50 | 28Ω | 45mA | 1.95MHz | 0.796MHz | ||
FALGA0307-821K | 820uH | 50 | 30Ω | 40mA | 1.85MHz | 0.796MHz | ||
FALGA0307-102K | 1000uH | 50 | 33Ω | 40mA | 1.4MHz | 0.796MHz | ||
FALGA0410 | 0.22-1000uH | 45-50 | 0.1-14Ω | 100-1400mA | 1.4-300MHz | 0.796-25.2MHz | - | |
FALGA0410-R22M | 0.22uH | 45 | 0.1Ω | 1400mA | 300MHz | 25.2MHz | ||
FALGA0410-R27M | 0.27uH | 45 | 0.11Ω | 1320mA | 270MHz | 25.2MHz | ||
FALGA0410-R33M | 0.33uH | 45 | 0.12Ω | 1280mA | 250MHz | 25.2MHz | ||
FALGA0410-R39M | 0.39uH | 45 | 0.13Ω | 1200mA | 230MHz | 25.2MHz | ||
FALGA0410-R47M | 0.47uH | 45 | 0.14Ω | 1150mA | 220MHz | 25.2MHz | ||
FALGA0410-R56M | 0.56uH | 45 | 0.15Ω | 1100mA | 200MHz | 25.2MHz | ||
FALGA0410-R68M | 0.68uH | 45 | 0.16Ω | 1030mA | 190MHz | 25.2MHz | ||
FALGA0410-R82M | 0.82uH | 45 | 0.17Ω | 980mA | 172MHz | 25.2MHz | ||
FALGA0410-1R0M | 1uH | 45 | 0.19Ω | 920mA | 157MHz | 25.2MHz | ||
FALGA0410-1R2M | 1.2uH | 50 | 0.21Ω | 880mA | 144MHz | 7.96MHz | ||
FALGA0410-1R5M | 1.5uH | 50 | 0.23Ω | 830mA | 131MHz | 7.96MHz | ||
FALGA0410-1R8M | 1.8uH | 55 | 0.25Ω | 790mA | 121MHz | 7.96MHz | ||
FALGA0410-2R2M | 2.2uH | 55 | 0.28Ω | 750mA | 110MHz | 7.96MHz | ||
FALGA0410-2R7M | 2.7uH | 60 | 0.3Ω | 720mA | 100MHz | 7.96MHz | ||
FALGA0410-3R3K | 3.3uH | 65 | 0.34Ω | 670mA | 94MHz | 7.96MHz | ||
FALGA0410-3R9K | 3.9uH | 65 | 0.37Ω | 640mA | 55MHz | 7.96MHz | ||
FALGA0410-4R7K | 4.7uH | 70 | 0.39Ω | 620mA | 56MHz | 7.96MHz | ||
FALGA0410-5R6K | 5.6uH | 70 | 0.43Ω | 590mA | 48MHz | 7.96MHz | ||
FALGA0410-6R8K | 6.8uH | 75 | 0.48Ω | 550mA | 37MHz | 7.96MHz | ||
FALGA0410-8R2K | 8.2uH | 80 | 0.52Ω | 530mA | 25MHz | 7.96MHz | ||
FALGA0410-100K | 10uH | 65 | 0.58Ω | 500mA | 21MHz | 7.96MHz | ||
FALGA0410-120K | 12uH | 50 | 0.63Ω | 480mA | 19MHz | 2.52MHz | ||
FALGA0410-150K | 15uH | 50 | 0.72Ω | 460mA | 17MHz | 2.52MHz | ||
FALGA0410-180K | 18uH | 50 | 0.77Ω | 430mA | 13MHz | 2.52MHz | ||
FALGA0410-220K | 22uH | 50 | 0.84Ω | 410mA | 9.6MHz | 2.52MHz | ||
FALGA0410-270K | 27uH | 55 | 0.94Ω | 390mA | 7.2MHz | 2.52MHz | ||
FALGA0410-330K | 33uH | 55 | 1.03Ω | 370mA | 6.6MHz | 2.52MHz | ||
FALGA0410-390K | 39uH | 50 | 1.12Ω | 350mA | 6.6MHz | 2.52MHz | ||
FALGA0410-470K | 47uH | 45 | 1.22Ω | 340mA | 6.3MHz | 2.52MHz | ||
FALGA0410-560K | 56uH | 40 | 1.34Ω | 320mA | 6.2MHz | 2.52MHz | ||
FALGA0410-680K | 68uH | 40 | 1.47Ω | 305mA | 5.7MHz | 2.52MHz | ||
FALGA0410-820K | 82uH | 35 | 1.62Ω | 290mA | 5.3MHz | 2.52MHz | ||
FALGA0410-101K | 100uH | 30 | 1.8Ω | 275mA | 4.8MHz | 2.52MHz | ||
FALGA0410-121K | 120uH | 55 | 3.7Ω | 185mA | 3.8MHz | 0.796MHz | ||
FALGA0410-151K | 150uH | 45 | 4.2Ω | 175mA | 3.5MHz | 0.796MHz | ||
FALGA0410-181K | 180uH | 50 | 4.6Ω | 165mA | 3.3MHz | 0.796MHz | ||
FALGA0410-221K | 220uH | 55 | 5.1Ω | 155mA | 3MHz | 0.796MHz | ||
FALGA0410-271K | 270uH | 65 | 5.8Ω | 145mA | 2.8MHz | 0.796MHz | ||
FALGA0410-331K | 330uH | 65 | 6.4Ω | 137mA | 2.6MHz | 0.796MHz | ||
FALGA0410-391K | 390uH | 65 | 7Ω | 133mA | 2.4MHz | 0.796MHz | ||
FALGA0410-471K | 470uH | 60 | 7.7Ω | 126mA | 2.25MHz | 0.796MHz | ||
FALGA0410-561K | 560uH | 60 | 8.5Ω | 120mA | 2.1MHz | 0.796MHz | ||
FALGA0410-681K | 680uH | 55 | 9.4Ω | 113mA | 1.95MHz | 0.796MHz | ||
FALGA0410-821K | 820uH | 55 | 10.5Ω | 105mA | 1.85MHz | 0.796MHz | ||
FALGA0410-102K | 1000uH | 50 | 14Ω | 100mA | 1.4MHz | 0.796MHz | ||
FALGA0510 | 470-10000uH | 20-60 | 7.7-105Ω | 25-126mA | 0.35-1.9MHz | 0.252-0.796MHz | - | |
FALGA0510-471K | 470uH | 60 | 7.7Ω | 126mA | 1.9MHz | 0.796MHz | ||
FALGA0510-561K | 560uH | 50 | 8.5Ω | 120mA | 1.8MHz | 0.796MHz | ||
FALGA0510-681K | 680uH | 55 | 9Ω | 113mA | 1.5MHz | 0.796MHz | ||
FALGA0510-821K | 820uH | 45 | 10.5Ω | 105mA | 1.2MHz | 0.796MHz | ||
FALGA0510-102K | 1000uH | 45 | 14Ω | 100mA | 1MHz | 0.252MHz | ||
FALGA0510-122K | 1200uH | 40 | 16.9Ω | 95mA | 0.95MHz | 0.252MHz | ||
FALGA0510-152K | 1500uH | 40 | 21.6Ω | 90mA | 0.9MHz | 0.252MHz | ||
FALGA0510-182K | 1800uH | 40 | 24Ω | 85mA | 0.85MHz | 0.252MHz | ||
FALGA0510-222K | 2200uH | 40 | 34.7Ω | 80mA | 0.8MHz | 0.252MHz | ||
FALGA0510-272K | 2700uH | 40 | 40Ω | 75mA | 0.75MHz | 0.252MHz | ||
FALGA0510-332K | 3300uH | 40 | 59.5Ω | 62mA | 0.7MHz | 0.252MHz | ||
FALGA0510-392K | 3900uH | 40 | 66Ω | 59mA | 0.65MHz | 0.252MHz | ||
FALGA0510-472K | 4700uH | 40 | 74Ω | 55mA | 0.6MHz | 0.252MHz | ||
FALGA0510-562K | 5600uH | 30 | 80Ω | 40mA | 0.5MHz | 0.252MHz | ||
FALGA0510-682K | 6800uH | 30 | 85Ω | 35mA | 0.45MHz | 0.252MHz | ||
FALGA0510-822K | 8200uH | 30 | 95Ω | 30mA | 0.4MHz | 0.252MHz | ||
FALGA0510-103K | 10000uH | 20 | 105Ω | 25mA | 0.35MHz | 0.252MHz | ||
FALGA0512 | 5.6-33000uH | 10-40 | 0.048-250Ω | 8-2100mA | 0.2-55MHz | 0.0796-7.96MHz | - | |
FALGA0512-5R6K | 5.6uH | 10 | 0.048Ω | 2100mA | 55MHz | 7.96MHz | ||
FALGA0512-6R8K | 6.8uH | 10 | 0.051Ω | 2000mA | 50MHz | 7.96MHz | ||
FALGA0512-8R2K | 8.2uH | 10 | 0.056Ω | 1950mA | 38MHz | 7.96MHz | ||
FALGA0512-100K | 10uH | 10 | 0.062Ω | 1900mA | 24MHz | 7.96MHz | ||
FALGA0512-120K | 12uH | 10 | 0.076Ω | 1800mA | 18MHz | 2.52MHz | ||
FALGA0512-150K | 15uH | 10 | 0.088Ω | 1700mA | 16MHz | 2.52MHz | ||
FALGA0512-180K | 18uH | 10 | 0.11Ω | 1600mA | 15MHz | 2.52MHz | ||
FALGA0512-220K | 22uH | 10 | 0.13Ω | 1550mA | 14MHz | 2.52MHz | ||
FALGA0512-270K | 27uH | 10 | 0.14Ω | 1300mA | 13MHz | 2.52MHz | ||
FALGA0512-330K | 33uH | 10 | 0.2Ω | 1200mA | 11MHz | 2.52MHz | ||
FALGA0512-390K | 39uH | 10 | 0.22Ω | 1000mA | 10MHz | 2.52MHz | ||
FALGA0512-470K | 47uH | 10 | 0.28Ω | 950mA | 9.5MHz | 2.52MHz | ||
FALGA0512-560K | 56uH | 10 | 0.3Ω | 900mA | 8MHz | 2.52MHz | ||
FALGA0512-680K | 68uH | 10 | 0.34Ω | 800mA | 7.5MHz | 2.52MHz | ||
FALGA0512-820K | 82uH | 10 | 0.385Ω | 750mA | 7MHz | 2.52MHz | ||
FALGA0512-101K | 100uH | 10 | 0.48Ω | 700mA | 6.5MHz | 2.52MHz | ||
FALGA0512-121K | 120uH | 15 | 0.595Ω | 600mA | 5MHz | 0.796MHz | ||
FALGA0512-151K | 150uH | 15 | 0.9Ω | 500mA | 4.5MHz | 0.796MHz | ||
FALGA0512-181K | 180uH | 15 | 1.1Ω | 400mA | 4MHz | 0.796MHz | ||
FALGA0512-221K | 220uH | 15 | 1.25Ω | 390mA | 3.8MHz | 0.796MHz | ||
FALGA0512-271K | 270uH | 15 | 1.85Ω | 330mA | 3.5MHz | 0.796MHz | ||
FALGA0512-331K | 330uH | 15 | 2.1Ω | 310mA | 3MHz | 0.796MHz | ||
FALGA0512-391K | 390uH | 15 | 2.38Ω | 300mA | 2.8MHz | 0.796MHz | ||
FALGA0512-471K | 470uH | 15 | 3.22Ω | 280mA | 2.5MHz | 0.796MHz | ||
FALGA0512-561K | 560uH | 15 | 3.85Ω | 270mA | 2.2MHz | 0.796MHz | ||
FALGA0512-681K | 680uH | 15 | 4Ω | 240mA | 2.1MHz | 0.796MHz | ||
FALGA0512-821K | 820uH | 15 | 5Ω | 230mA | 2MHz | 0.796MHz | ||
FALGA0512-102K | 1000uH | 15 | 5.8Ω | 190mA | 1.8MHz | 0.796MHz | ||
FALGA0512-122K | 1200uH | 15 | 7.1Ω | 180mA | 1.6MHz | 0.252MHz | ||
FALGA0512-152K | 1500uH | 15 | 7.8Ω | 170mA | 1.5MHz | 0.252MHz | ||
FALGA0512-182K | 1800uH | 15 | 11Ω | 150mA | 1.3MHz | 0.252MHz | ||
FALGA0512-222K | 2200uH | 35 | 14Ω | 120mA | 1.2MHz | 0.252MHz | ||
FALGA0512-272K | 2700uH | 35 | 18Ω | 100mA | 1.1MHz | 0.252MHz | ||
FALGA0512-332K | 3300uH | 35 | 22Ω | 80mA | 1MHz | 0.252MHz | ||
FALGA0512-392K | 3900uH | 40 | 26Ω | 60mA | 0.9MHz | 0.252MHz | ||
FALGA0512-472K | 4700uH | 50 | 32Ω | 50mA | 0.7MHz | 0.252MHz | ||
FALGA0512-562K | 5600uH | 70 | 34Ω | 40mA | 0.6MHz | 0.252MHz | ||
FALGA0512-682K | 6800uH | 70 | 45Ω | 34mA | 0.5MHz | 0.252MHz | ||
FALGA0512-822K | 8200uH | 50 | 60Ω | 30mA | 0.4MHz | 0.252MHz | ||
FALGA0512-103K | 10000uH | 40 | 70Ω | 28mA | 0.4MHz | 0.252MHz | ||
FALGA0512-123K | 12000uH | 40 | 82Ω | 24mA | 0.3MHz | 0.0796MHz | ||
FALGA0512-153K | 15000uH | 40 | 89Ω | 22mA | 0.3MHz | 0.0796MHz | ||
FALGA0512-183K | 18000uH | 40 | 141Ω | 15mA | 0.3MHz | 0.0796MHz | ||
FALGA0512-223K | 22000uH | 40 | 170Ω | 12mA | 0.2MHz | 0.0796MHz | ||
FALGA0512-333K | 33000uH | 40 | 250Ω | 8mA | 0.2MHz | 0.0796MHz | ||
FALGA0612 | 470-10000uH | 40-50 | 1.9-45.3Ω | 60-340mA | 0.3-2MHz | 0.252-0.796MHz | - | |
FALGA0612-471K | 470uH | 50 | 1.9Ω | 340mA | 2MHz | 0.796MHz | ||
FALGA0612-561K | 560uH | 50 | 2.05Ω | 310mA | 1.7MHz | 0.796MHz | ||
FALGA0612-681K | 680uH | 50 | 2.3Ω | 280mA | 1.6MHz | 0.796MHz | ||
FALGA0612-821K | 820uH | 50 | 2.94Ω | 260mA | 1.3MHz | 0.796MHz | ||
FALGA0612-102K | 1000uH | 50 | 3.85Ω | 230mA | 1MHz | 0.252MHz | ||
FALGA0612-122K | 1200uH | 50 | 5.7Ω | 210mA | 0.9MHz | 0.252MHz | ||
FALGA0612-152K | 1500uH | 50 | 6.75Ω | 200mA | 0.8MHz | 0.252MHz | ||
FALGA0612-182K | 1800uH | 50 | 7.55Ω | 160mA | 0.7MHz | 0.252MHz | ||
FALGA0612-222K | 2200uH | 50 | 8.74Ω | 130mA | 0.65MHz | 0.252MHz | ||
FALGA0612-272K | 2700uH | 50 | 11.4Ω | 90mA | 0.6MHz | 0.252MHz | ||
FALGA0612-332K | 3300uH | 50 | 13.1Ω | 86mA | 0.58MHz | 0.252MHz | ||
FALGA0612-392K | 3900uH | 50 | 17.4Ω | 82mA | 0.55MHz | 0.252MHz | ||
FALGA0612-472K | 4700uH | 50 | 24.8Ω | 80mA | 0.5MHz | 0.252MHz | ||
FALGA0612-562K | 5600uH | 50 | 26.8Ω | 76mA | 0.45MHz | 0.252MHz | ||
FALGA0612-682K | 6800uH | 50 | 31.6Ω | 72mA | 0.41MHz | 0.252MHz | ||
FALGA0612-822K | 8200uH | 40 | 40.8Ω | 70mA | 0.35MHz | 0.252MHz | ||
FALGA0612-103K | 10000uH | 40 | 45.3Ω | 60mA | 0.3MHz | 0.252MHz |
* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
Series |
