Low magnetic loss high current inductor
Click to expand the criteria search box
Low magnetic loss high current inductor Filter Models: 5 in total, please see the table below.
| Series | Inductance | DCR | Saturation Current(A) | Temperature Current(A) | Spec. | Sample Application |

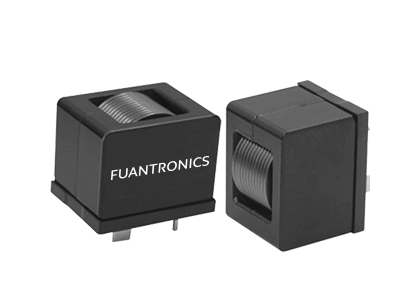

| FACSCE1470 | 2.50-4.70 | 2.74-3.50 | 8.00-16.0 | 18.0 | - | - |
| FACSCE1470-2R5M | 2.50 | 2.74-3.50 | 16.0 | 18.0 | ||
| FACSCE1470-3R3M | 3.30 | 2.74-3.50 | 12.0 | 18.0 | ||
| FACSCE1470-4R7M | 4.70 | 2.74-3.50 | 8.00 | 18.0 | ||

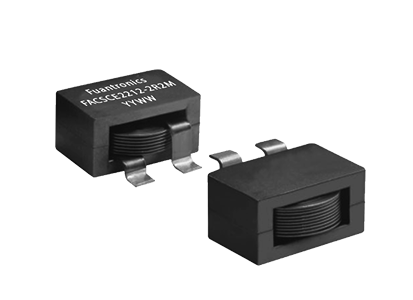

| FACSCE2212 | 0.82-56.0 | 0.57-14.0 | 5.00-70.0 | 13.0-40.0 | - | - |
| FACSCE2212-R82M | 0.82 | 0.57-0.62 | 70.0 | 40.0 | ||
| FACSCE2212-2R2M | 2.20 | 2.68-2.98 | 64.0 | 22.0 | ||
| FACSCE2212-3R3M | 3.30 | 4.30-4.80 | 49.0 | 19.0 | ||
| FACSCE2212-4R7M | 4.70 | 4.30-4.80 | 33.0 | 19.0 | ||
| FACSCE2212-6R8M | 6.80 | 4.30-4.80 | 29.0 | 19.0 | ||
| FACSCE2212-100M | 10.0 | 4.60-5.20 | 20.0 | 16.0 | ||
| FACSCE2212-220M | 22.0 | 12.7-14.0 | 15.0 | 13.0 | ||
| FACSCE2212-330M | 33.0 | 12.7-14.0 | 10.5 | 13.0 | ||
| FACSCE2212-470M | 47.0 | 12.7-14.0 | 8.00 | 13.0 | ||
| FACSCE2212-560M | 56.0 | 12.7-14.0 | 5.00 | 13.0 | ||

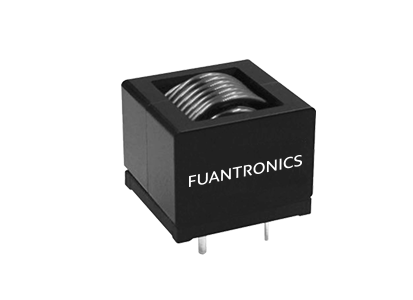

| FACSCE2580 | 1.50-56.0 | 1.60-6.00 | 3.00-60.0 | 20.0-28.0 | - | - |
| FACSCE2580-1R5M | 1.50 | 1.60-1.80 | 60.0 | 28.0 | ||
| FACSCE2580-3R3M | 3.30 | 2.60-3.00 | 38.0 | 26.0 | ||
| FACSCE2580-4R7M | 4.70 | 2.60-3.00 | 30.0 | 26.0 | ||
| FACSCE2580-6R8M | 6.80 | 3.10-3.50 | 23.0 | 23.0 | ||
| FACSCE2580-100M | 10.0 | 4.96-6.00 | 20.0 | 20.0 | ||
| FACSCE2580-150M | 15.0 | 4.96-6.00 | 11.0 | 20.0 | ||
| FACSCE2580-220M | 22.0 | 4.96-6.00 | 8.00 | 20.0 | ||
| FACSCE2580-330M | 33.0 | 4.96-6.00 | 6.00 | 20.0 | ||
| FACSCE2580-560M | 56.0 | 4.96-6.00 | 3.00 | 20.0 | ||
| FACPER3231 | 100 | 9.02-12.0 | 23.0 | 23.0 | - | - |
| FACPER3231-101M | 100 | 9.02-12.0 | 23.0 | 23.0 | ||
| FACPEX2722 | 10.0-27.0 | 3.60-4.10 | 30.0-95.0 | 25.0 | - | - |
| FACPEX2722-100M | 10.0 | 3.60-4.10 | 95.0 | 25.0 | ||
| FACPEX2722-120M | 12.0 | 3.60-4.10 | 80.0 | 25.0 | ||
| FACPEX2722-150M | 15.0 | 3.60-4.10 | 63.0 | 25.0 | ||
| FACPEX2722-180M | 18.0 | 3.60-4.10 | 48.0 | 25.0 | ||
| FACPEX2722-220M | 22.0 | 3.60-4.10 | 33.0 | 25.0 | ||
| FACPEX2722-270M | 27.0 | 3.60-4.10 | 30.0 | 25.0 |
* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
