AAJ
Click to expand the criteria search box
AAJ Filter Models: 1 in total, please see the table below.
| Series | Rated power（W） | Input voltage（V） | Output current（mA） | Output voltage（V） | Efficiency | Certificate | Spec. | PF | Sample Application |
| AAJ Series | 40-500 | 90-305 | 120-2100 | 180-260 | - | CE | - | >0.95 | - |
| AAJ40-C200-X | 40 | 90-305 | 120-200 | 180-260 | 93% | CE | >0.95 | ||

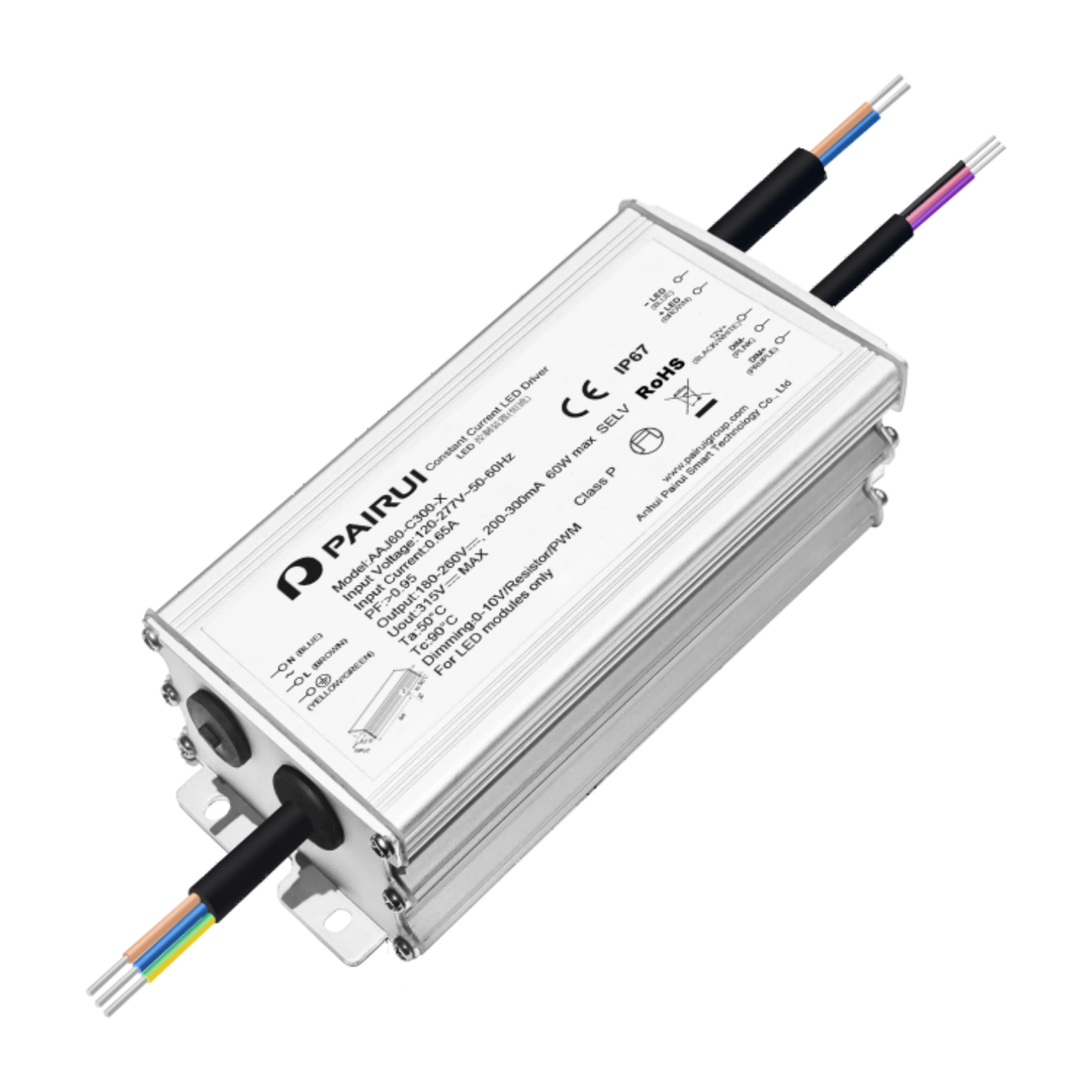

| AAJ60-C300-X | 60 | 90-305 | 200-300 | 180-260 | 94% | CE | >0.95 | ||

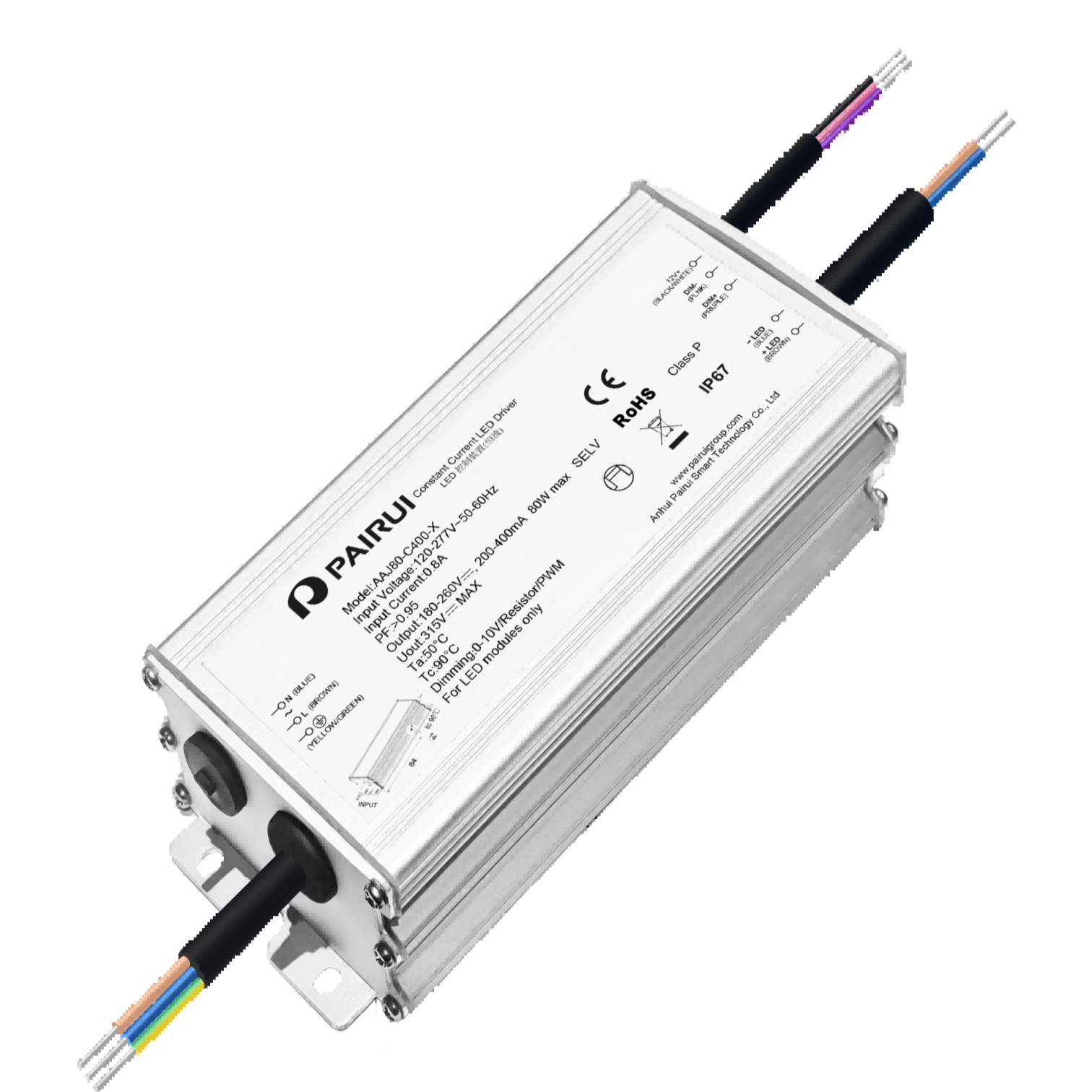

| AAJ80-C400-X | 80 | 90-305 | 200-400 | 180-260 | 95% | CE | ＞0.95 | ||

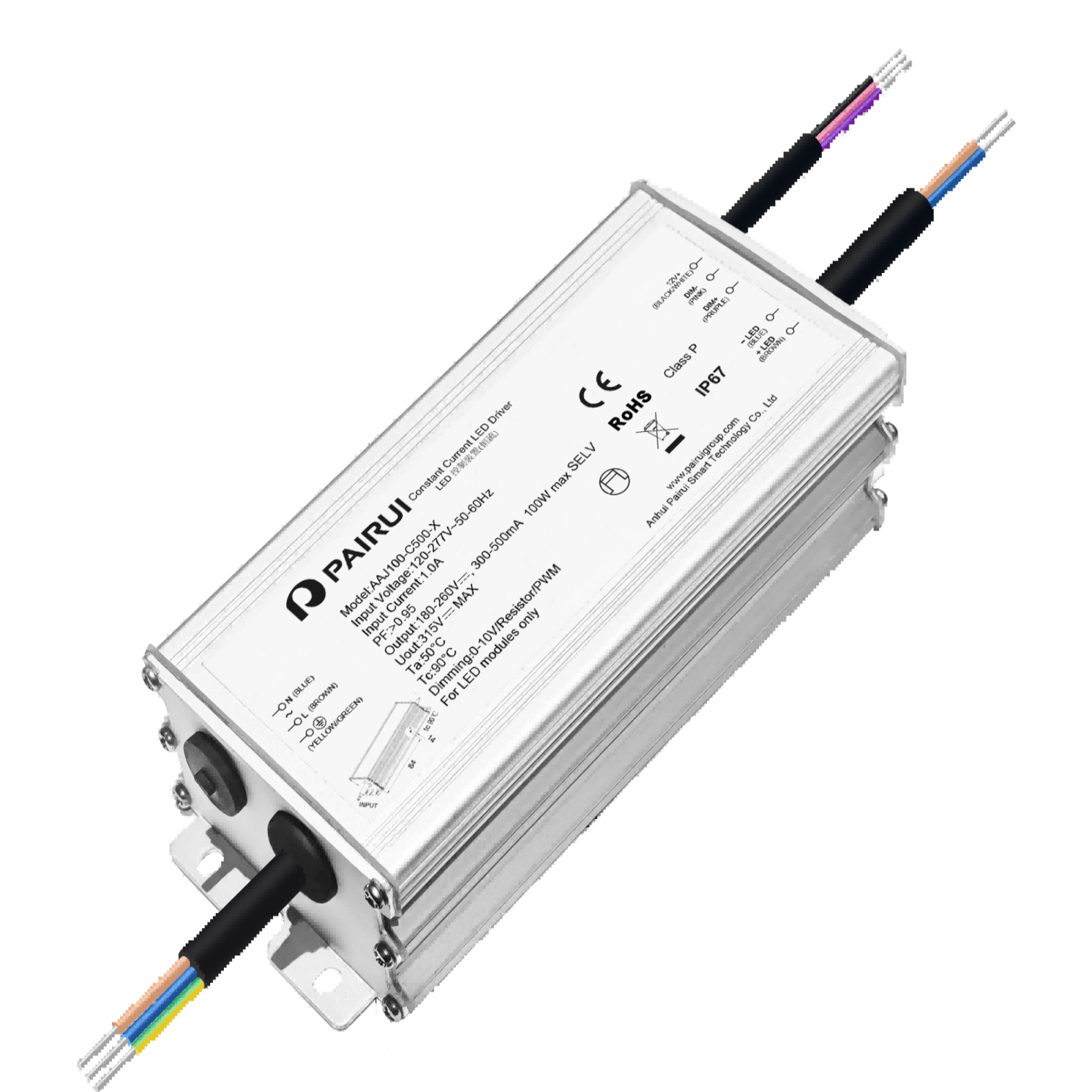

| AAJ100-C500-X | 100 | 90-305 | 300-500 | 180-260 | 95% | CE | ＞0.95 | ||
| AAJ120-C600-X | 120 | 90-305 | 400-600 | 180-260 | 95% | CE | ＞0.95 | ||

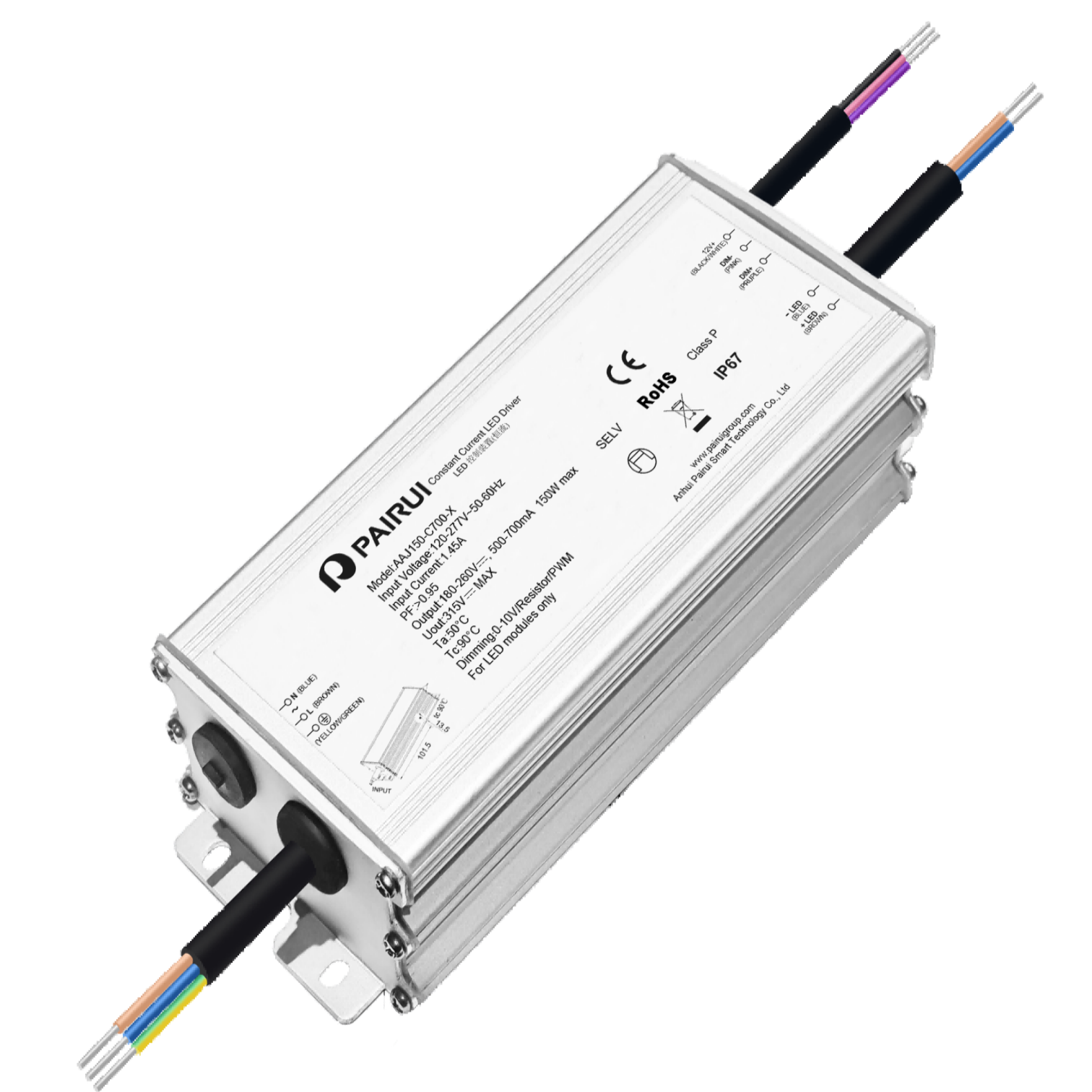

| AAJ150-C750-X | 150 | 90-305 | 500-750 | 180-260 | 95% | CE | ＞0.95 | ||

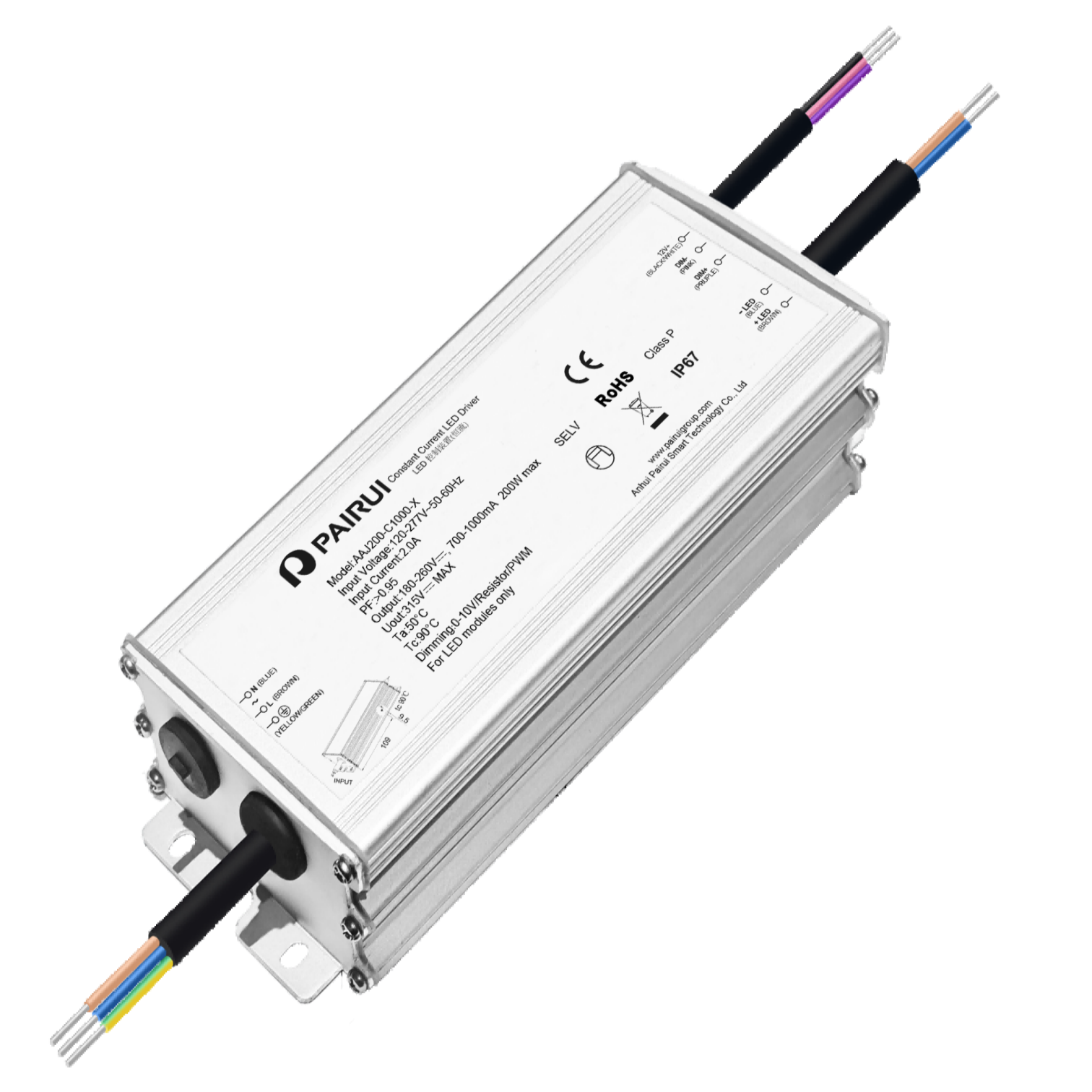

| AAJ200-C1000-X | 200 | 90-305 | 700-1000 | 180-260 | 95% | CE | ＞0.95 | ||
| AAJ250-C1200-X | 250 | 90-305 | 800-1200 | 180-260 | 95% | CE | ＞0.95 | ||
| AAJ320-C1500-X | 320 | 90-305 | 1000-1500 | 180-260 | 95% | CE | ＞0.95 | ||
| AAJ400-C1650-X | 400 | 90-305 | 1000-1750 | 210-360 | 95% | CE | ＞0.95 | ||
| AAJ500-C2100-X | 500 | 90-305 | 1350-2100 | 210-360 | 95% | CE | ＞0.95 |
* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
