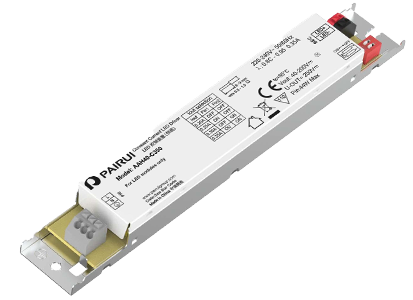

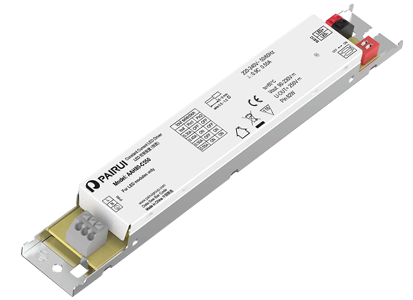

AAH Series Power Supply
Click to expand the criteria search box
AAH Series Power Supply Filter Models: 3 in total, please see the table below.
| Series | Rated power（W） | Input voltage（V） | Output current（mA） | Output voltage（V） | PF | Efficiency | Certificate | Spec. | Sample Application |
| AAH Series(20W) | 20 | 198-264 | 200-350 | 25-100 | 0.9 | 88% | CE | - | |
| AAH20-C200 | 20 | 198-264 | 200 | 25-100 | 0.9 | 88% | CE | ||
| AAH20-C250 | 20 | 198-264 | 250 | 25-80 | 0.9 | 88% | CE | ||
| AAH20-C300 | 20 | 198-264 | 300 | 25-66.7V | 0.9 | 88% | CE | ||
| AAH20-C350 | 20 | 198-264 | 350 | 25-57V | 0.9 | 88% | CE | ||
| AAH Series(40W) | 40 | 198-264 | 200-350 | 40-200 | 0.95 | 92.5% | CE | - | |
| AAH40-C200 | 40 | 198-264 | 200 | 40-200 | 0.95 | 92.5% | CE | ||
| AAH40-C250 | 40 | 198-264 | 250 | 40-160 | 0.95 | 92.5% | CE | ||
| AAH40-C300 | 40 | 198-264 | 300 | 40-133 | 0.95 | 92.5% | CE | ||
| AAH40-C350 | 40 | 198-264 | 350 | 40-114 | 0.95 | 92.5% | CE | ||
| AAH Series(60W) | 60 | 198-264 | 200-350 | 90-200 | 0.95 | 93.5% | CE | - | |
| AAH60-C200 | 40 | 198-264 | 200 | 90-200 | 0.95 | 93.5% | CE | ||
| AAH60-C250 | 50 | 198-264 | 250 | 90-200 | 0.95 | 93.5% | CE | ||
| AAH60-C300 | 60 | 198-264 | 300 | 90-200 | 0.95 | 93.5% | CE | ||
| AAH60-C350 | 60 | 198-264 | 350 | 90-172 | 0.95 | 93.5% | CE |
* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
